CS1102S2 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Mounting Type	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Height off PCB, Vertical	Operating Force	Contact Rating @ Voltage	Actuator Orientation	Switch Function	Outline [x]	Outline [y]	Circuit

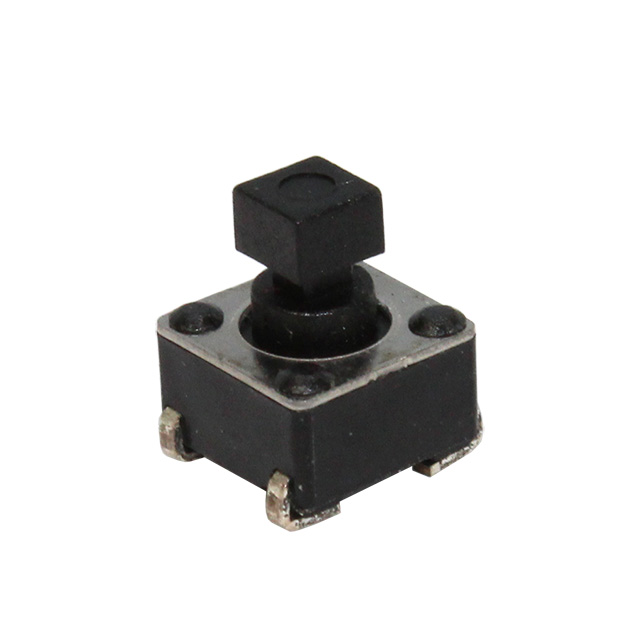

CIT Relay and Switch CS1102S2.8F160J	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	J Lead	85 °C	-40 C	Non-Illuminated	7.5 mm	160 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO

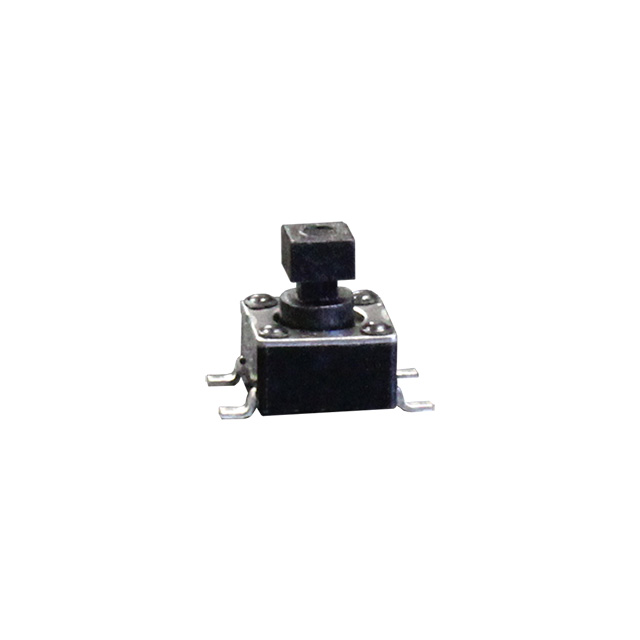

CIT Relay and Switch CS1102S2.8F160	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	Gull Wing	85 °C	-40 C	Non-Illuminated	7.5 mm	160 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
CIT Relay and Switch CS1102S2.4F260	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	Gull Wing	85 °C	-40 C	Non-Illuminated	7.5 mm	260 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
CIT Relay and Switch CS1102S2.4F160	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	Gull Wing	85 °C	-40 C	Non-Illuminated	7.5 mm	160 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
CIT Relay and Switch CS1102S2.8F100	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	Gull Wing	85 °C	-40 C	Non-Illuminated	7.5 mm	100 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
CIT Relay and Switch CS1102S2.8F100J	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	J Lead	85 °C	-40 C	Non-Illuminated	7.5 mm	100 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
CIT Relay and Switch CS1102S2.8F260J	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	J Lead	85 °C	-40 C	Non-Illuminated	7.5 mm	260 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
CIT Relay and Switch CS1102S2.4F260J	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	J Lead	85 °C	-40 C	Non-Illuminated	7.5 mm	260 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
CIT Relay and Switch CS1102S2.4F100J	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	J Lead	85 °C	-40 C	Non-Illuminated	7.5 mm	100 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
CIT Relay and Switch CS1102S2.4F160J	Polyamide (PA46) Nylon 4/6	0.25 mm	Surface Mount	Plunger for Cap	J Lead	85 °C	-40 C	Non-Illuminated	7.5 mm	160 gf	0.05 A 50 VDC	Top Actuated	Off-Mom	6 mm	6 mm	SPST-NO
