0275-0 Series

Catalog

CONN PC PIN CIRC .020DIA TINLEAD

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Mounting Type	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Length - Above Flange [x]	Length - Above Flange [x]	Termination	Contact Finish	Length - Overall	Length - Overall	Contact Finish Thickness	Contact Finish Thickness	Insulation	Terminal Style	Terminal Type	Flange Diameter [diameter]	Flange Diameter [diameter]

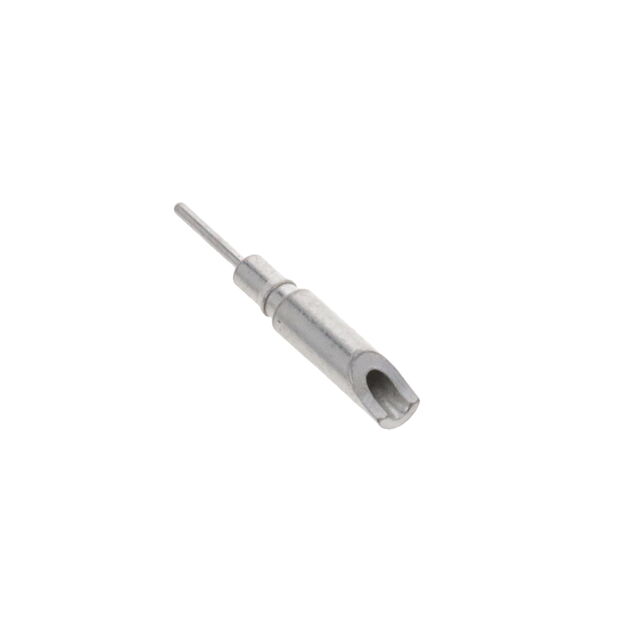

Mill-Max Manufacturing Corp. 0275-0-01-01-00-00-03-0	1.45 mm	0.057 in	Phosphor Bronze	Through Hole	0.02 in	0.51 mm	6.58 mm	0.259 in	Press-Fit	Tin-Lead	12.47 mm	0.491 "	200 Áin	5.08 Ám	Non-Insulated	Wire	PC Pin	0.072 "	1.83 mm

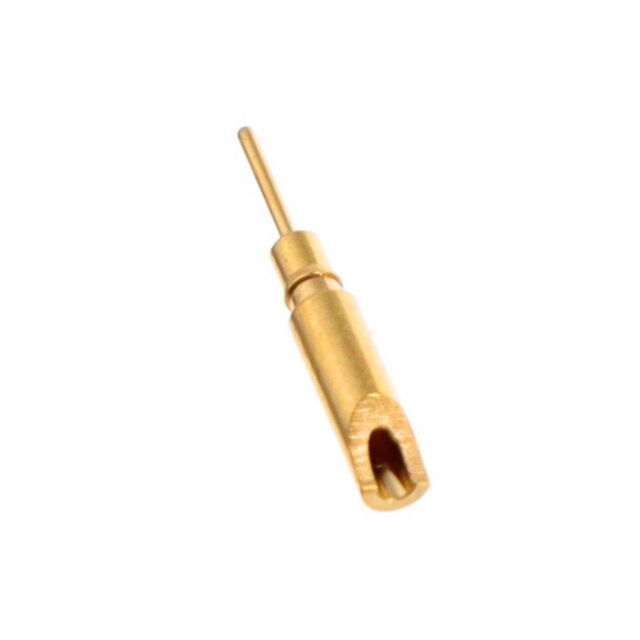

Mill-Max Manufacturing Corp. 0275-0-01-21-00-00-03-0	1.45 mm	0.057 in	Phosphor Bronze	Through Hole	0.02 in	0.51 mm	6.58 mm	0.259 in	Press-Fit	Gold	12.47 mm	0.491 "	20 µin	0.51 µm	Non-Insulated	Wire	PC Pin	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0275-0-01-34-00-00-03-0	1.45 mm	0.057 in	Phosphor Bronze	Through Hole	0.02 in	0.51 mm	6.58 mm	0.259 in	Press-Fit	Gold	12.47 mm	0.491 "	50 µin	1.27 µm	Non-Insulated	Wire	PC Pin	0.072 "	1.83 mm
