PMD1209 Series
Manufacturer: Sunon Fans
Beta
⌘K

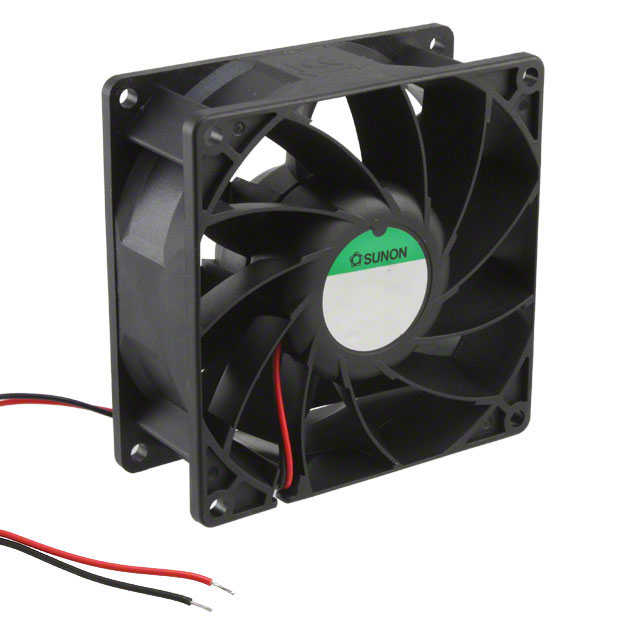

FAN AXIAL 92X38MM 12VDC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Width [y] | RPM | Fan Type | Termination | Voltage - Rated | Weight | Weight | Size / Dimension [y] | Size / Dimension [x] | Air Flow | Air Flow | Noise | Approval Agency | Power (Watts) | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | 13.8 VDC | 6 VDC | 1.04 A | 38 mm | 4900 RPM | Tubeaxial | 2 Wire Leads | 12 VDC | 190.06 g | 0.419 lb | 92 mm | 92 mm | 120.2 CFM | 3.37 mł/min | 57.6 dB(A) | CE cUR TUV UL | 12.5 W | 176.9 Pa | 0.71 in H2O | 70 °C | -10 °C | Ball | |
 Sunon Fans | 0.71 A | 38 mm | 4400 RPM | Tubeaxial | 2 Wire Leads | 12 VDC | 92 mm | 92 mm | 106.3 CFM | 2.98 m³/min | 53.8 dB(A) | 8.5 W | 139.5 Pa | 0.56 in H2O | Ball | Auto Restart |
