1634000 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

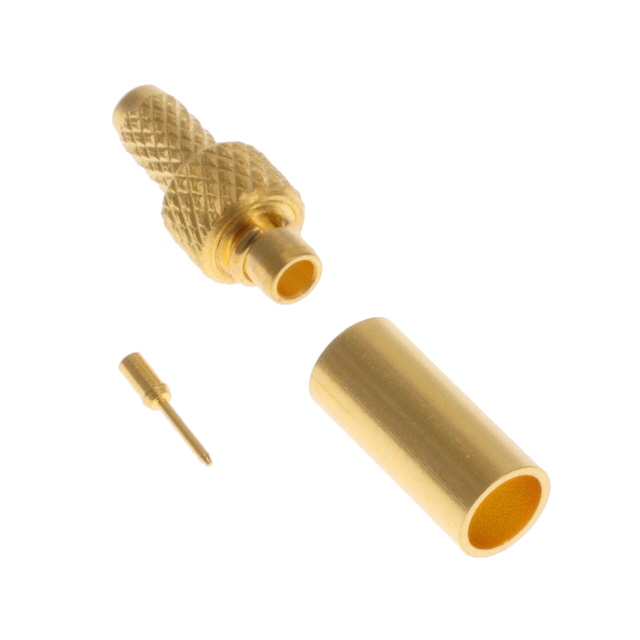

CONN MMCX PLUG STR 50 OHM SOLDER
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Dielectric Material | Center Contact Plating | Body Material | Mating Cycles | Includes | Frequency - Max [Max] | Fastening Type | Housing Color | Number of Ports | Center Contact Material | Shield Termination | Mounting Type | Connector Style | Contact Termination | Connector Type | Cable Group | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 155 C | -55 C | 170 V | Polytetrafluoroethylene (PTFE) | Gold | Brass | 500 | 1 Connector 1 Contact 1 Ferrule | 6000 MHz | Snap-On | Gold | 1 | Brass | Crimp | Free Hanging (In-Line) | MMCX | Solder | Plug Male Pin | 188A 316 RG-174 | 50 Ohms |
