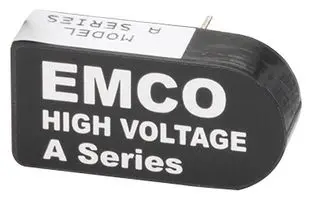

A Series
Manufacturer: XP Power
Beta
⌘K
HIGH VOLTAGE DC/DC CONVERTER, PROPORTIONAL, POSITIVE OUTPUT, FIXED, ADJUSTABLE, 1 W, 10 MA
| Part | Number of Outputs | Type | Package / Case | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Type | Voltage - Input (Min) [Min] | Features | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 | Approval Agency | Voltage - Input (Max) [Max] | Voltage - Isolation | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 1 | High Voltage - Isolated Module | 5-DIP Module | 10 mA | -25 °C | 75 ░C | ITE (Commercial) | Through Hole | 0.7 V | Proportional Output | 11.4 mm | 0.45 in | 23.4 mm | 0.92 " | 0.25 " | 6.4 mm | 100 V | CE cURus | 12 V | 500 V | |
 XP Power | 1 | High Voltage - Isolated Module | 5-DIP Module | 1 mA | -25 °C | 75 ░C | ITE (Commercial) | Through Hole | 0.7 V | Proportional Output | 11.4 mm | 0.45 in | 23.4 mm | 0.92 " | 0.25 " | 6.4 mm | 1000 V | CE cURus | 5 V | 500 V | 62368-1 |
