9001KR Series

Catalog

SWITCH ACTUATOR, RED, SCHNEIDER HARMONY 9001K SERIES 30MM PUSHBUTTON SWITCHES, HARMONY SERIES

Part	Actuator Type	Requires	Type	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions [diameter]	Illumination	(Select First, Then Apply Filters) Compatible Series	Switch Function	Termination Style	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Mounting Type	For Use With/Related Products	Accessory Type	Illumination Type, Color	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]

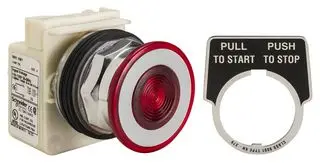

SCHNEIDER ELECTRIC 9001KR9P1R	Mushroom Pushbutton	Contact Block(s) Illumination Source	Momentary	Schneider Harmony 9001K	30 mm	Illuminated - Red

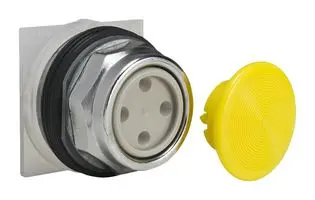

SCHNEIDER ELECTRIC 9001KR4Y	Mushroom Pushbutton	Contact Block(s)	Maintained	Schneider Harmony 9001K	30 mm	Non-Illuminated

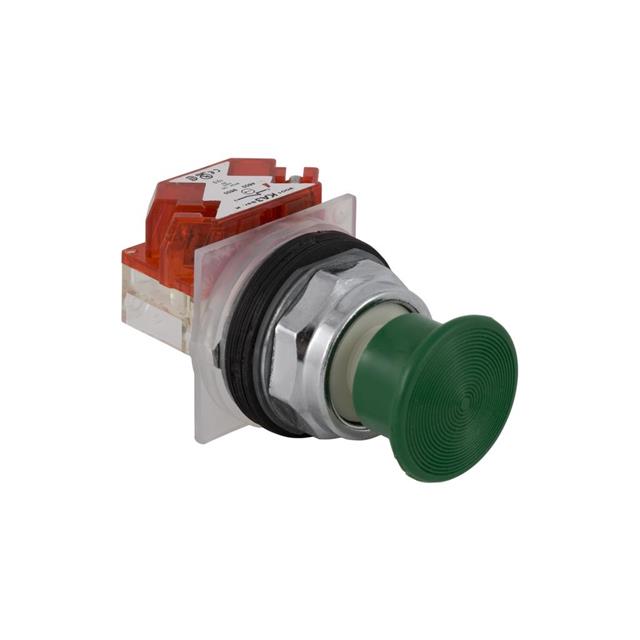

SCHNEIDER ELECTRIC 9001KR24GH6	Mushroom Pushbutton	Contact Block(s)	Momentary	Schneider	30 mm	Non-Illuminated	30 mm
SCHNEIDER ELECTRIC 9001KR4GH5	Button Mushroom Round		Standard		30 mm			Off-On	Screw Terminal	10 A	SPST-NO	Green	Panel Mount Front
SCHNEIDER ELECTRIC 9001KR2GH7	Button Round		Standard		30 mm			Off-On	Screw Terminal	10 A	DPST-NO	Green	Panel Mount Front

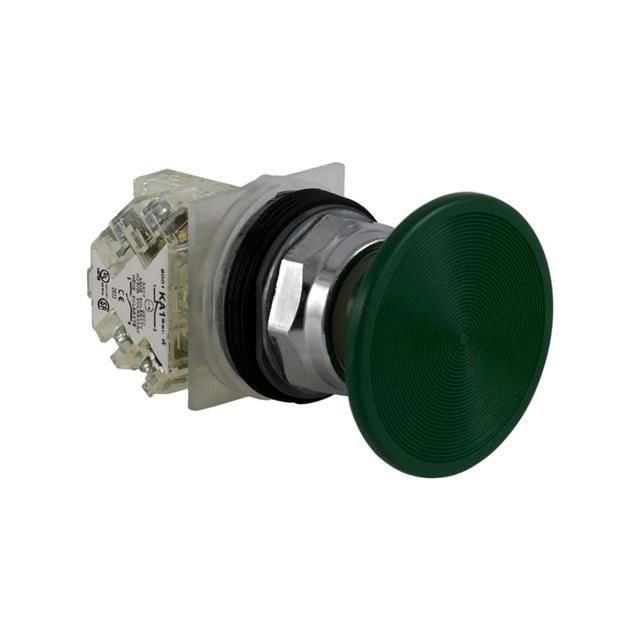

SCHNEIDER ELECTRIC 9001KR25GH13	Mushroom Pushbutton	Contact Block(s)	Momentary	Schneider	30 mm	Non-Illuminated	30 mm

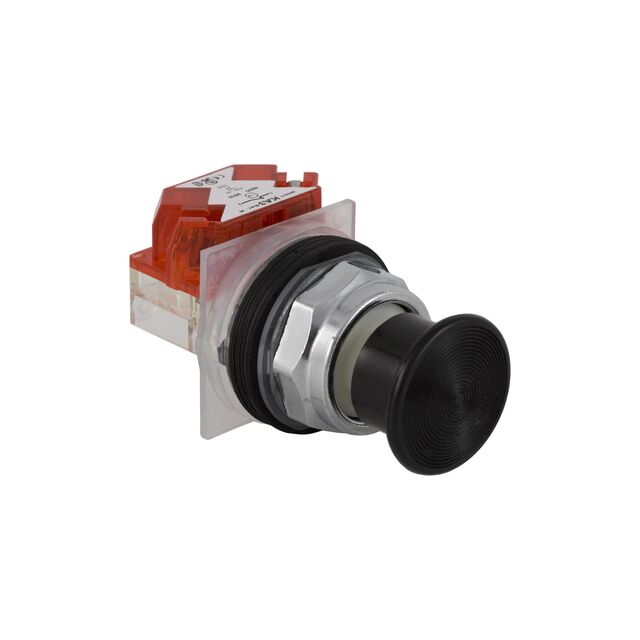

SCHNEIDER ELECTRIC 9001KR24BH36	Button Mushroom Round		Standard		30 mm			Off-On	Screw Terminal	10 A	SPST-NO	Black	Panel Mount Front
SCHNEIDER ELECTRIC 9001KR9														Harmony 9001K Series	Operating Head
SCHNEIDER ELECTRIC 9001KR25B	Mushroom Pushbutton	Contact Block(s)	Momentary	Schneider Harmony 9001K	30 mm	Non-Illuminated

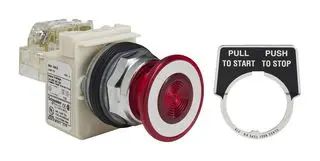

SCHNEIDER ELECTRIC 9001KR9P35RH13	Button Mushroom Round		Illuminated Standard		30 mm			On-On	Screw Terminal	10 A	SPDT	Red	Panel Mount Front			Incandescent Red	24 VAC/DC	28 VAC/DC
