1393819 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE 4PDT 200MA 24V

Part	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Termination Style	Relay Type	Contact Form	Contact Rating (Current)	Mounting Type	Switching Voltage [Max]	Coil Current	Release Time	Seal Rating	Must Operate Voltage	Contact Material [custom]	Contact Material [custom]	Coil Type	Coil Voltage	Contact Material	Load - Max Switching
TE Connectivity AMP Connectors 1-1393819-0	890 Ohms	70 °C	-40 C	7.5 ms	Plug In	General Purpose	4PDT (4 Form C)	200 mA	Socketable	30 VAC 36 VDC	27 mA	3 ms	Sealed - Hermetically	14.5 VDC	Gold	Au	Non Latching	24 VDC
TE Connectivity AMP Connectors 2-1393819-5	3.2 kOhms	70 °C	-40 C	7.5 ms	Plug In	General Purpose		200 mA	Socketable	30 VAC 36 VDC	0.015 A	3 ms	Sealed - Hermetically				Non Latching	48 VDC	Gold (Au) Silver (Ag)
TE Connectivity AMP Connectors 2-1393819-0	3.2 kOhms	70 °C	-40 C	7.5 ms	Plug In	General Purpose	4PDT (4 Form C)	2 A	Socketable	125 VAC 150 VDC	0.015 A	3 ms	Sealed - Hermetically	30 VDC			Non Latching	48 VDC	Gold (Au) Silver (Ag)	250 VA 300 W
TE Connectivity AMP Connectors 4-1393819-9	890 Ohms	70 °C	-40 C	7.5 ms	Plug In	General Purpose	4PDT (4 Form C)	2 A	Socketable	125 VAC 150 VDC	27 mA	3 ms	Sealed - Hermetically	14.5 VDC			Non Latching	24 VDC	Gold (Au) Silver (Ag)	250 VA 300 W
TE Connectivity AMP Connectors 1393819-1	550 Ohms	70 °C	-40 C	7.5 ms	Plug In	General Purpose	4PDT (4 Form C)	200 mA	Socketable	30 VAC 36 VDC	36.3 mA	3 ms	Sealed - Hermetically	17.7 VDC	Gold	Au	Non Latching	20 VDC
TE Connectivity AMP Connectors 3-1393819-3	15 kOhms	70 °C	-40 C	7.5 ms	Plug In	General Purpose	4PDT (4 Form C)	200 mA	Socketable	30 VAC 36 VDC	7.3 mA	3 ms	Sealed - Hermetically	98 VDC	Gold	Au	Non Latching	110 VDC

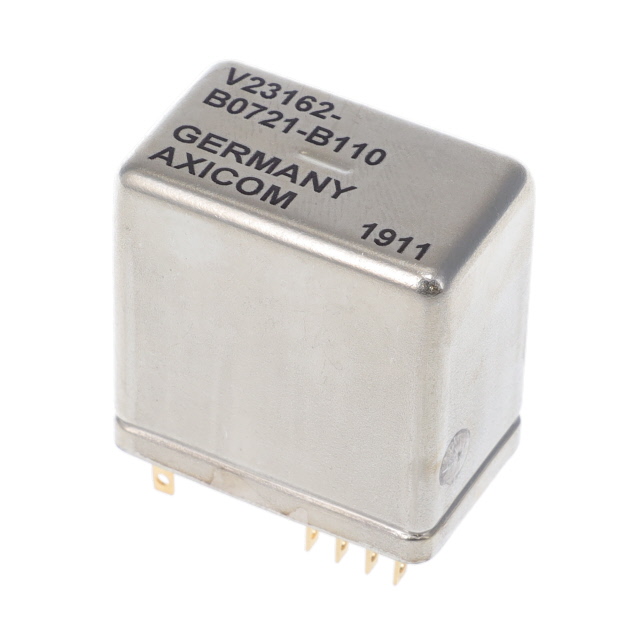

TE Connectivity AMP Connectors 1393819-4	890 Ohms	70 °C	-40 C	7.5 ms	Plug In	General Purpose	4PDT (4 Form C)	2 A	Socketable	125 VAC 150 VDC	27 mA	3 ms	Sealed - Hermetically	14.5 VDC			Non Latching	24 VDC	Gold (Au) Silver (Ag)	250 VA 300 W
