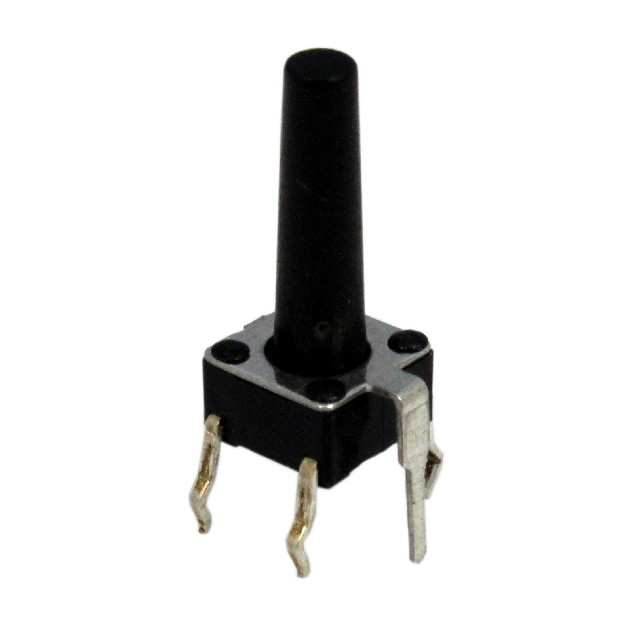

CT1102P15 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Outline [x] | Outline [y] | Actuator Orientation | Illumination | Contact Rating @ Voltage | Switch Function | Operating Force | Actuator Type | Mounting Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Height off PCB, Vertical | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.25 mm | 6 mm | 6 mm | Top Actuated | Non-Illuminated | 0.05 A 50 VDC | Off-Mom | 100 gf | Plunger for Cap | Through Hole | PC Pin | 85 °C | -40 C | 15 mm | SPST-NO |
