UTS78 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Mounting Feature	Fastening Type	Shell Size - Insert Width	Shell Size - Insert Length	Applications	Termination	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Shell Material	Connector Type	Primary Material	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Voltage Rating	Mounting Type	Orientation	Features	Color	Insert Material	Material Flammability Rating	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)

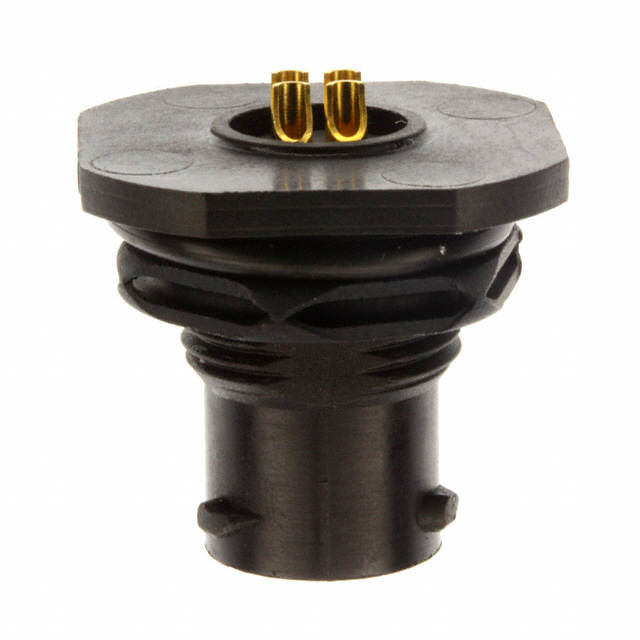

Amphenol Aerospace Operations UTS78E4P	Bulkhead Front Side Nut	Bayonet Lock	4 mm	8 mm	Energy Instrumentation Lighting Telecommunications	Solder Cup	4	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Male Pins Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C

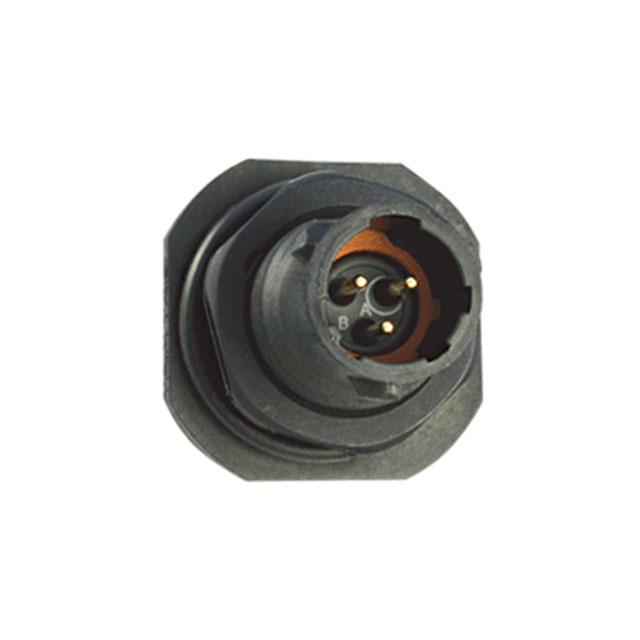

Amphenol Aerospace Operations UTS78E98P	Bulkhead Front Side Nut	Bayonet Lock			Energy Instrumentation Lighting Telecommunications	Solder Cup	3	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Male Pins Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C	8	98

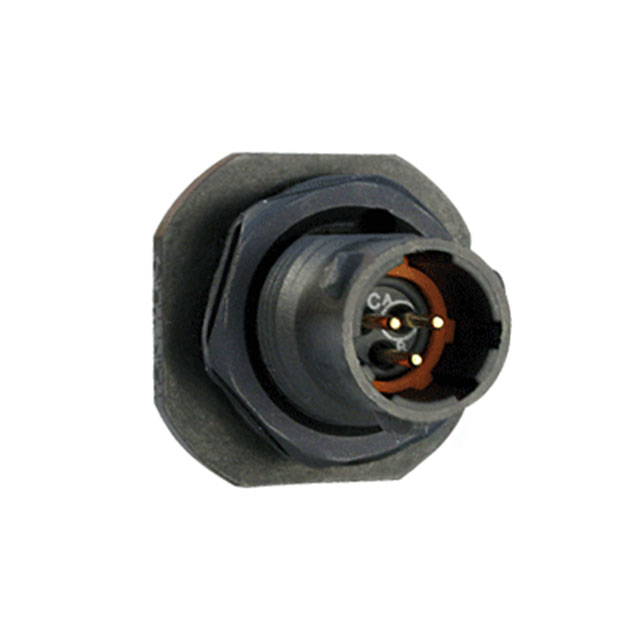

Amphenol Aerospace Operations UTS78E33P	Bulkhead Front Side Nut	Bayonet Lock			Energy Instrumentation Lighting Telecommunications	Solder Cup	3	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Male Pins Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C	8	33
Amphenol Aerospace Operations UTS78E4S	Bulkhead Front Side Nut	Bayonet Lock	4 mm	8 mm	Energy Instrumentation Lighting Telecommunications	Solder Cup	4	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Female Sockets Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C

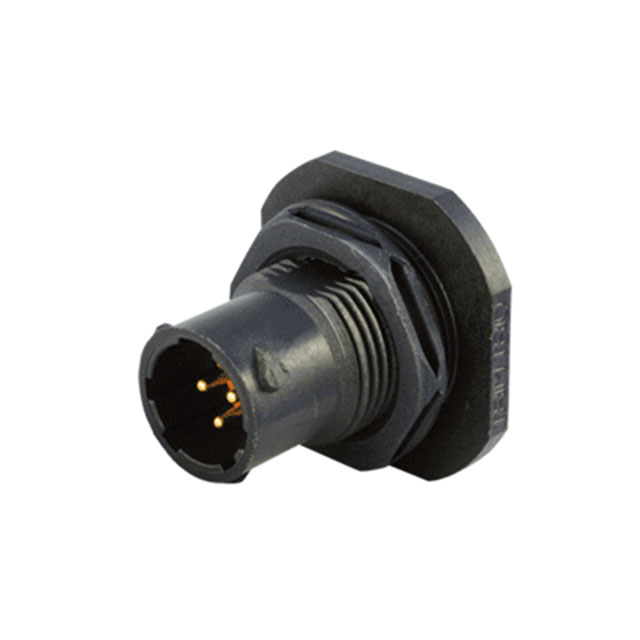

Amphenol Aerospace Operations UTS78D3P	Bulkhead Front Side Nut	Bayonet Lock	3 mm	8 mm	Energy Instrumentation Lighting Telecommunications	Solder	3	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Male Pins Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount Through Hole	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C
Amphenol Aerospace Operations UTS78D4S32	Bulkhead Front Side Nut	Bayonet Lock	4 mm	8 mm	Energy Instrumentation Lighting Telecommunications	Solder	4	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Female Sockets Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount Through Hole	N (Normal)	Board Lock UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C
Amphenol Aerospace Operations UTS78E2S	Bulkhead Front Side Nut	Bayonet Lock	2 mm	8 mm	Energy Instrumentation Lighting Telecommunications	Solder Cup	2	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Female Sockets Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C

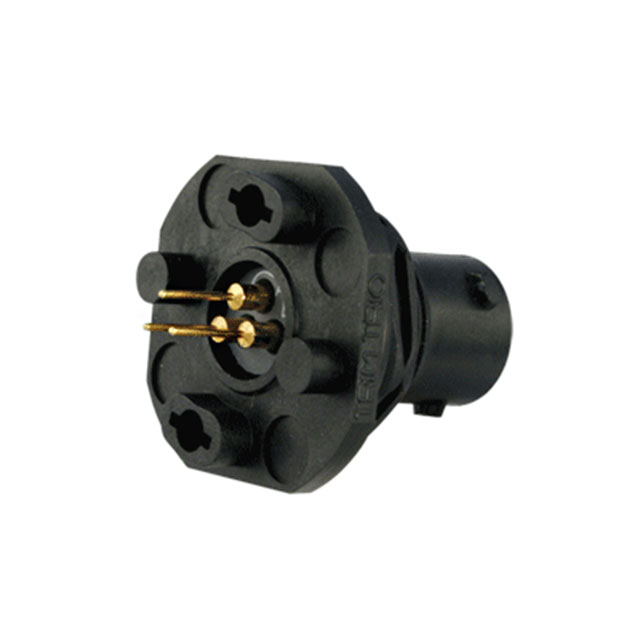

Amphenol Aerospace Operations UTS78D33P	Bulkhead Front Side Nut	Bayonet Lock			Energy Instrumentation Lighting Telecommunications	Solder	3	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Male Pins Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount Through Hole	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C	8	33

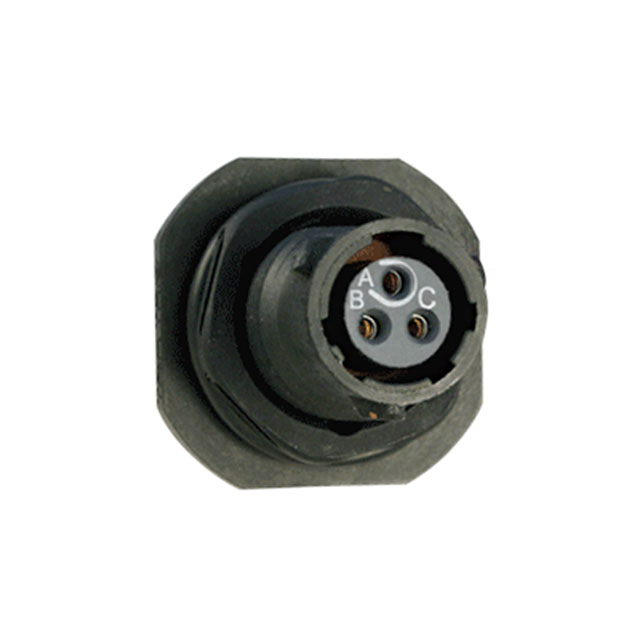

Amphenol Aerospace Operations UTS78E33S	Bulkhead Front Side Nut	Bayonet Lock			Energy Instrumentation Lighting Telecommunications	Solder Cup	3	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Female Sockets Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C	8	33

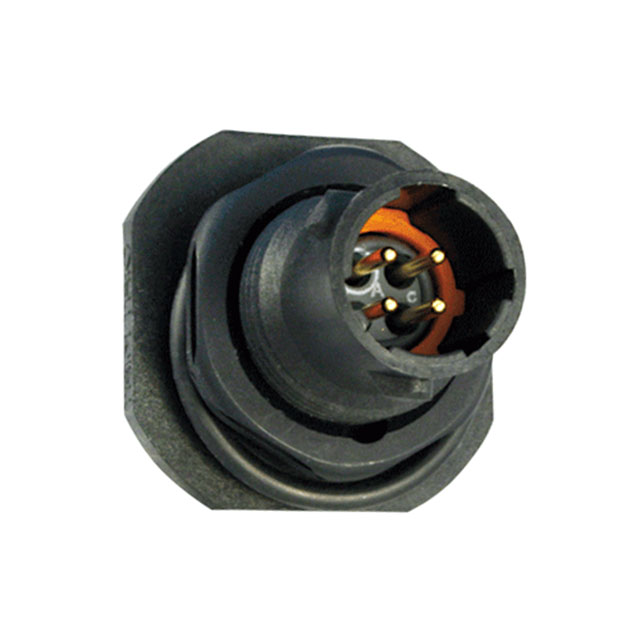

Amphenol Aerospace Operations UTS78D4P	Bulkhead Front Side Nut	Bayonet Lock	4 mm	8 mm	Energy Instrumentation Lighting Telecommunications	Solder	4	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Male Pins Receptacle	Plastic	16 µin	Brass	Gold	250 V	Panel Mount Through Hole	N (Normal)	UV Resistant	Black	Polychloroprene	UL94 V-0	Unshielded	-40 °C	105 °C
