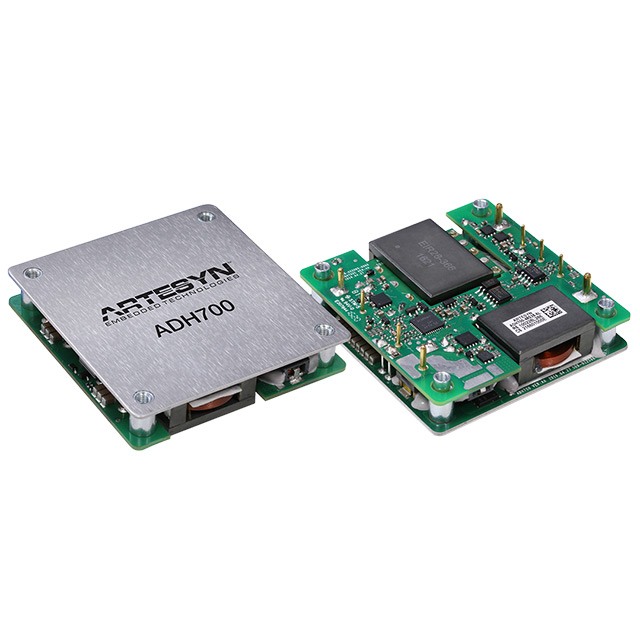

ADH700 Series
Manufacturer: ARTESYN / Advanced Energy
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
700W, 36 - 65VIN, SINGLE, 50V@14A, 95% EFF, 1/2 BRICK ALUMINUM SUBSTRATE, NEGATIVE LOGIC/PIN LENGTH:3.8MM
| Part | Package Name | Voltage - Isolation | Applications | Efficiency | Operating Temperature (Min) | Operating Temperature (Max) | Power (Watts) | Package / Case | Current - Output (Max) | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Voltage - Output 1 | Type | Mounting Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Features | Approval Agency | Control Features | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | Half Brick | 2.25 kV | ITE (Commercial) | 94.8 % | -40 °C | 85 °C | 700 W | Half Brick | 14 A | 0.5 in | 2.28 in | 2.4 in | 50 V | Isolated Module | Through Hole | 1 | 36 V | 65 V | ||||
ARTESYN / Advanced Energy | Half Brick | 1500 Vrns | ITE (Commercial) | 95.2 % | -40 °C | 85 °C | 700 W | Half Brick | 25 A | 0.5 in | 2.28 in | 2.4 in | 28 V | Isolated PoE (Power over Ethernet) Module | Through Hole | 1 | 36 V | 75 V | Baseplate Remote On/Off Remote Sense | CE TUV UL | Active Low Enable | 60950-1 |
ARTESYN / Advanced Energy | Half Brick | 2.25 kV | ITE (Commercial) | 93.5 % | -40 °C | 85 °C | 700 W | Half Brick | 14 A | 0.5 in | 2.28 in | 2.4 in | 48 V | Isolated PoE (Power over Ethernet) Module | Through Hole | 1 | 36 V | 75 V | Remote On/Off Remote Sense | CE TUV UL | Active Low Enable | 62368-1 |
 ARTESYN / Advanced Energy | Half Brick | 1500 Vrns | ITE (Commercial) | 95 % | -40 °C | 85 °C | 700 W | 1/2 Brick 9-DIP Module | 25 A | 0.5 in | 2.28 in | 2.4 in | 28 V | Isolated Module | Through Hole | 1 | 36 V | 65 V | OCP OTP OVP Remote On/Off SCP UVLO |
