GF1 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

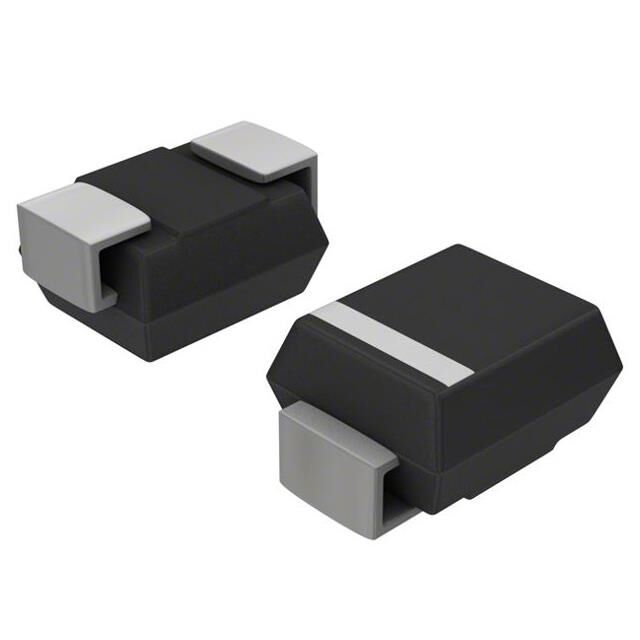

DIODE SWITCHING 100V 1A 2-PIN DO-214BA T/R

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Package / Case	Mounting Type	Supplier Device Package	Speed	Speed	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F
Vishay General Semiconductor - Diodes Division GF1B-E3/67A	100 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.1 V
Vishay General Semiconductor - Diodes Division GF1M-E3/67A	1000 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.2 V
Vishay General Semiconductor - Diodes Division GF1J-E3/67A	600 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.1 V
Vishay General Semiconductor - Diodes Division GF1JHE3/5CA	600 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.1 V
Vishay General Semiconductor - Diodes Division GF1BHE3/67A	100 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.1 V
Vishay General Semiconductor - Diodes Division GF1G/1754	400 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.1 V
Vishay General Semiconductor - Diodes Division GF1B-E3/5CA	100 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.1 V
Vishay General Semiconductor - Diodes Division GF1M/1754	1000 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.2 V
Vishay General Semiconductor - Diodes Division GF1D-E3/67A	200 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.1 V
Vishay General Semiconductor - Diodes Division GF1K-E3/67A	800 V	175 ░C	-65 C	2 µs	DO-214BA	Surface Mount	DO-214BA (GF1)	Standard Recovery >500ns	200 mA	5 µA	Standard	1 A	1.2 V	15 pF
