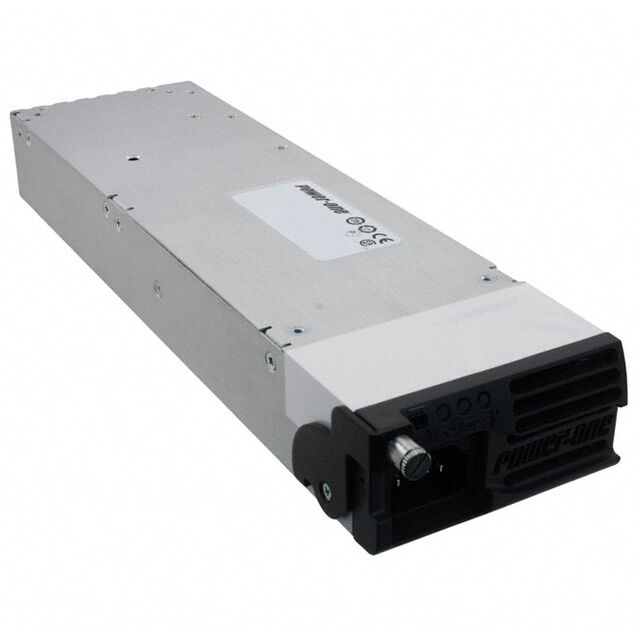

FNP850 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
AC/DC CONVERTER 12V 850W
| Part | Minimum Load Required | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Efficiency | Number of Outputs | Type | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Voltage - Output 1 | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 4000 V | 70 °C | 0 °C | Rack Mount | 87 % | 1 | Front End | 73 A | 264 VAC | 90 VAC | ITE (Commercial) | 12 V | Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 215.9 mm | 101.6 mm | 4 " | 8.5 in | 41.9 mm | 1.65 " |
