NPTC092 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

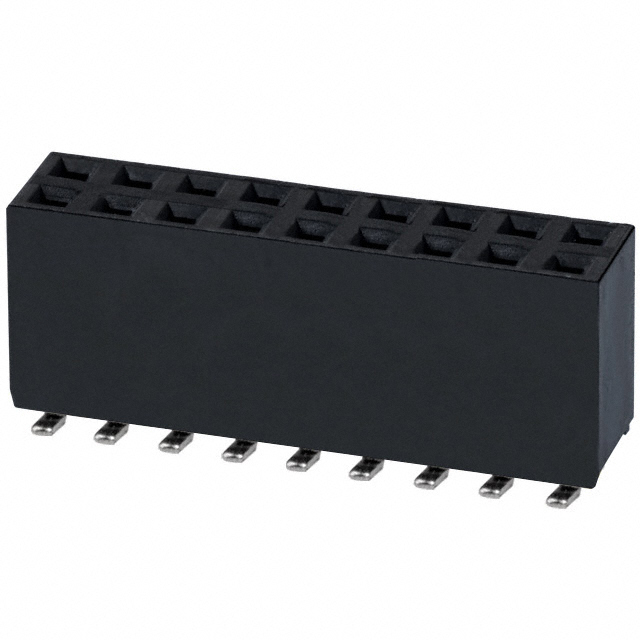

CONN HDR 18POS 0.1 TIN SMD
| Part | Insulation Material | Contact Shape | Contact Material | Material Flammability Rating | Insulation Height [z] | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Type | Fastening Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Connector Type | Number of Positions Loaded | Current Rating (Amps) | Number of Rows [custom] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Square | Phosphor Bronze | UL94 V-0 | 0.299 " | 7.6 mm | 0.1 " | 2.54 mm | 18 | Female Socket | Push-Pull | 250 V | 125 °C | -40 C | Surface Mount | Black | 0.1 in | 2.54 mm | Solder | Header | All | 3 A | 2 | Tin |
