2320201 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

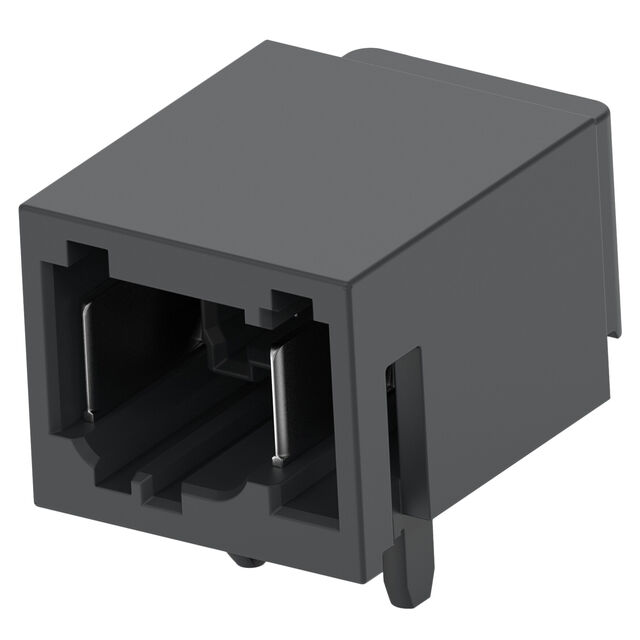

CONN SHROUDED HEADER HDR 2 POS 1.8MM SOLDER RA SIDE ENTRY THRU-HOLE T/R
| Part | Contact Shape | Insulation Color | Insulation Material | Shrouding | Contact Length - Post | Contact Length - Post | Style | Number of Positions Loaded | Contact Type | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Current Rating (Amps) | Features | Number of Rows | Contact Material | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Rectangular | Black | Glass Filled Nylon 4T Polyamide (PA4T) | Shrouded - 4 Wall | 0.094 in | 2.4 mm | Board to Cable/Wire | All | Male Pin | Through Hole Right Angle | 0.071 in | 1.8 mm | 11.5 mm | 0.453 in | Solder | -40 °C | 105 ░C | 2 | 3 A | Board Guide | 1 | Copper Alloy | Push-Pull | Header |
