210879 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

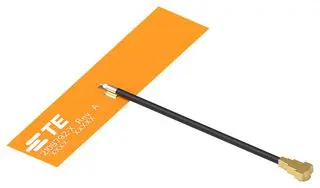

ANTENNA, WLAN / BLUETOOTH / ZIGBEE, ADHESIVE, CABLE ASSEMBLY
| Part | Frequency (Center/Band) | Termination | Number of Bands | Frequency Group | Antenna Type | Features | Mounting Type | VSWR | Gain | Height (Max) [z] | Height (Max) [z] | Frequency Range [Max] | Frequency Range [Min] | Applications | RF Family/Standard |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.44 GHz 5.3685 GHz 6525 MHz | MHF | 3 | Wide Band | PCB Trace | Cable - 120mm | Adhesive | 2 2.5 | 2.7 dBi 3.3 dBi 3.5 dBi | 0.004 in | 0.1 mm | 2.4835 GHz 5.875 GHz 7.125 GHz | 2.4 GHz 5.15 GHz 5.925 GHz | Bluetooth Wi-Fi Zigbee™ | 802.15.4 Bluetooth WiFi |
