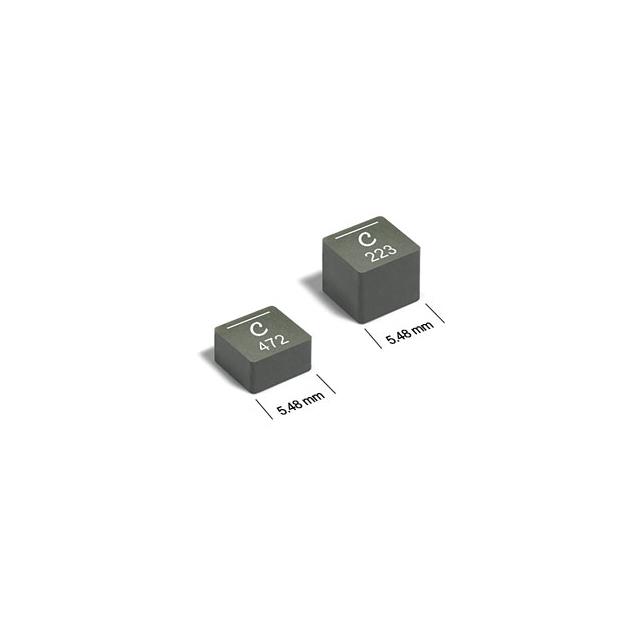

XAL5050 Series
Manufacturer: Coilcraft
Beta
⌘K
POWER INDUCTORS - SMD 8.2UH SHLD 20% 6.1A 34.95MOHMS AECQ2
| Part | Package / Case | Mounting Type | Current - Saturation (Isat) | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Type | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Frequency - Self Resonant | Material - Core | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | Nonstandard | Surface Mount | 5.6 A | 8.2 µH | 0.216 in | 0.208 in | 5.48 mm | 5.28 mm | 20 % | Molded | 6.1 A | 0.201 in | 5.1 mm | 34.95 mOhm | 100 kHz | 125 °C | -40 C | Shielded | 18 MHz | Metal Composite | AEC-Q200 |
