RER-L2 Series
Manufacturer: Dinkle Corporation, USA
Beta
⌘K

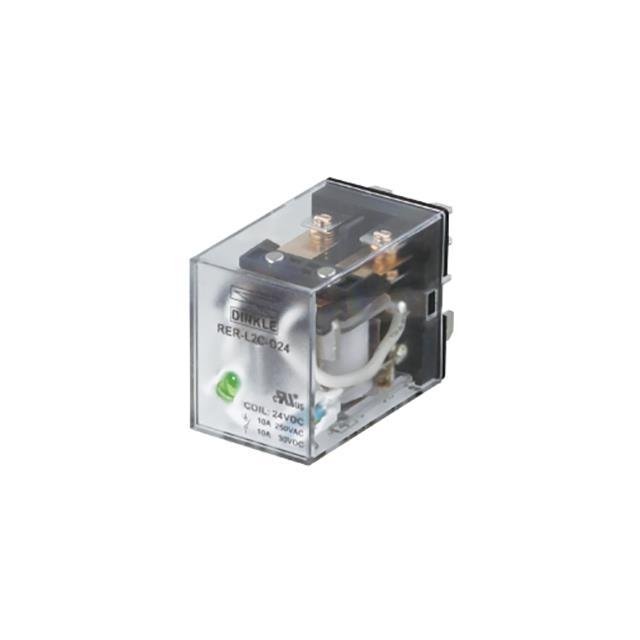

RELAY GEN PURPOSE SPDT 10A 24V
| Part | Coil Resistance | Switching Voltage [Max] | Mounting Type | Coil Type | Operate Time | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Coil Current | Release Time | Termination Style | Termination Style | Must Operate Voltage | Features | Relay Type | Must Release Voltage | Contact Form | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Dinkle Corporation, USA | 640 Ohms | 30 VDC 250 VAC | Socketable | Non Latching | 20 ms | 10 A | 55 °C | -25 °C | 24 VDC | 36.9 mA | 20 ms | 0.187 in 4.7 mm | Plug In Quick Connect | 18 VDC | Lighted Indicator | General Purpose | 2.4 VDC | DPDT (2 Form C) | Silver Tin Oxide (AgSnO) |
