GNRM Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

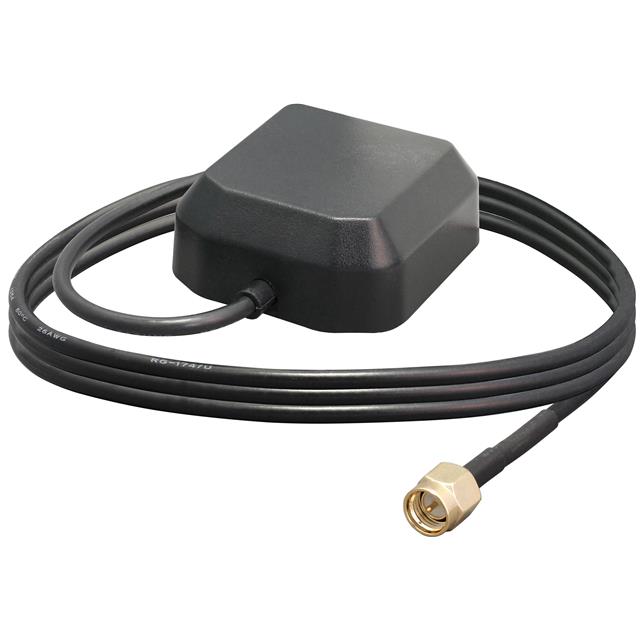

ANTENNAS ANTENNA GNSS L1L5 EXT MAG RG174 3M SMA
| Part | Number of Bands | Applications | Features | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Antenna Type | VSWR [x] | Height (Max) [z] | Height (Max) [z] | Gain | RF Family/Standard | Mounting Type | Frequency (Center/Band) | Return Loss | Ingress Protection | Frequency Range [Min] | Frequency Range [Max] | VSWR | Height (Max) [diameter] | Height (Max) [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 5 | BeiDou Galileo GLONASS GNSS GPS | Cable - 3m LNA | 2 GHz | 1 GHz | UHF | Module | 1.2 1.3 | 16.3 mm | 0.642 in | 27.2 dBi 28.9 dBi 30.5 dBi | Navigation | Magnetic | 1.176 GHz 1.561 GHz 1.575 GHz 1.601 GHz 1.602 GHz | -22.7 dB -18.4 dB -16.6 dB | |||||||
 TE Connectivity AMP Connectors | 3 | BeiDou Galileo GLONASS GNSS GPS | LNA | 2 GHz | 1 GHz | UHF | Module | 32.8 dBi 33.4 dBi 33.5 dBi | Navigation | Magnetic | -19.9 dB -19 dB -14.5 dB | IP67 | 1.601 GHz | 1.602 GHz | 1.2 1.3 1.5 | 0.591 in | 15 mm | 5 m |
