EZM15 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 30POS 0.156
| Part | Contact Type | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Card Thickness | Card Thickness | Card Type | Mounting Type | Contact Material | Read Out | Number of Positions/Bay/Row [custom] | Material - Insulation | Contact Finish | Color | Termination | Number of Positions | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

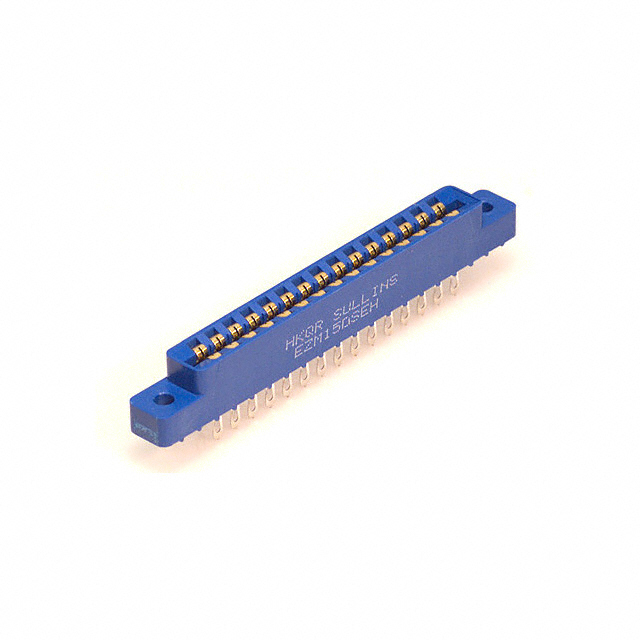

 Sullins Connector Solutions | Full Bellows | Female | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Through Hole | Phosphor Bronze | Dual | 15 | Polybutylene Terephthalate (PBT) | Gold | Blue | Solder | 30 | 2 | 125 °C | -65 ░C | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám |

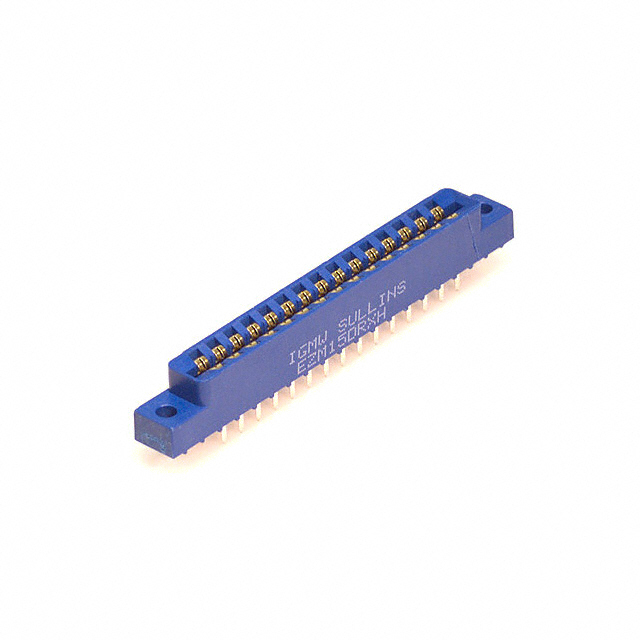

 Sullins Connector Solutions | Full Bellows | Female | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Dual | 15 | Polybutylene Terephthalate (PBT) | Gold | Blue | Solder Eyelet(s) | 30 | 2 | 125 °C | -65 ░C | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám |
