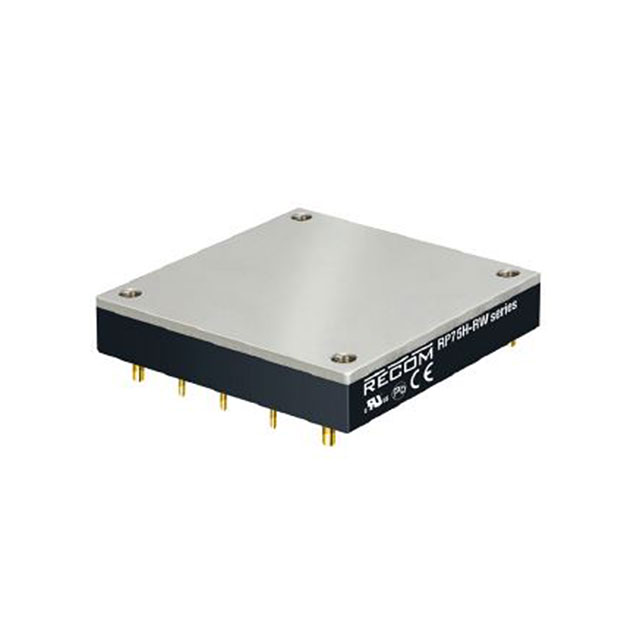

RP75H-RW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 75W 9-36VIN 15VOUT 5A

Part	Power (Watts)	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max)	Type	Supplier Device Package	Voltage - Output 1	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Features	Efficiency	Mounting Type	Package / Case	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]

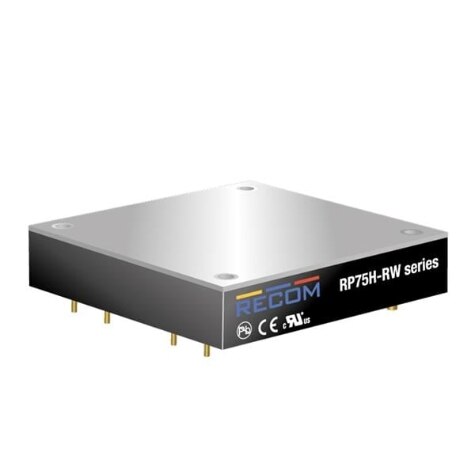

Recom Power RP75H-2415SRW/P	75 W	ITE (Commercial) Railway	9 V	1	5 A	Isolated Module	Half Brick	15 V	36 V	105 C	-40 °C	57.9 mm	2.28 "	2.4 "	12.1 mm	0.48 "	61 mm	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	88 %	Through Hole	Half Brick
Recom Power RP75H-11048SRW/P	77 W	ITE (Commercial) Railway	43 V	1		Isolated Module	Half Brick	48 V	160 V	105 C	-40 °C	57.9 mm			12.7 mm		61 mm	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	90 %	Through Hole	Half Brick	1.6 A	2.28 in	2.4 in	0.5 in
Recom Power RP75H-2405SRW/N-HC	75 W	ITE (Commercial) Railway	9 V	1		Isolated Module	Half Brick	5 V	36 V	105 C	-40 °C	57.9 mm			24.1 mm		61 mm	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	88 %	Through Hole	Half Brick	15 A	2.28 in	2.4 in	24.13 mm
Recom Power RP75H-11015SRW/P	75 W	ITE (Commercial) Railway	43 V	1	5 A	Isolated Module	Half Brick	15 V	160 V	105 C	-40 °C	57.9 mm			12.7 mm		61 mm	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	91 %	Through Hole	Half Brick		2.28 in	2.4 in	0.5 in
Recom Power RP75H-11005SRW/N	75 W	ITE (Commercial) Railway	43 V	1		Isolated Module	Half Brick	5 V	160 V	105 C	-40 °C	57.9 mm			12.7 mm		61 mm	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	91 %	Through Hole	Half Brick	15 A	2.28 in	2.4 in	0.5 in
Recom Power RP75H-4805SRW/N	75 W	ITE (Commercial) Railway	18 V	1		Isolated Module	Half Brick	5 V	75 V	105 C	-40 °C	57.9 mm	2.28 "	2.4 "	12.1 mm	0.48 "	61 mm	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	90 %	Through Hole	Half Brick	15 A
Recom Power RP75H-2412SRW/N-HC	75 W	ITE (Commercial) Railway	9 V	1		Isolated Module	Half Brick	12 V	36 V	105 C	-40 °C	57.9 mm			24.1 mm		61 mm	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	88 %	Through Hole	Half Brick	6.3 A	2.28 in	2.4 in	24.13 mm
Recom Power RP75H-4805SRW/P-HC	75 W	ITE (Commercial) Railway	18 V	1		Isolated Module	Half Brick	5 V	75 V	105 C	-40 °C	57.9 mm			24.1 mm		61 mm	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	90 %	Through Hole	Half Brick	15 A	2.28 in	2.4 in	24.13 mm
Recom Power RP75H-11024SRW/P	76 W	ITE (Commercial) Railway	43 V	1		Isolated Module	Half Brick	24 V	160 V	105 C	-40 °C	57.9 mm			12.7 mm		61 mm	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	90 %	Through Hole	Half Brick	3.2 A	2.28 in	2.4 in	0.5 in
Recom Power RP75H-2405SRW/N	75 W	ITE (Commercial) Railway	9 V	1		Isolated Module	Half Brick	5 V	36 V	105 C	-40 °C	57.9 mm	2.28 "	2.4 "	12.1 mm	0.48 "	61 mm	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	88 %	Through Hole	Half Brick	15 A
