IL 016 Series
Manufacturer: NVE Corp/Isolation Products
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

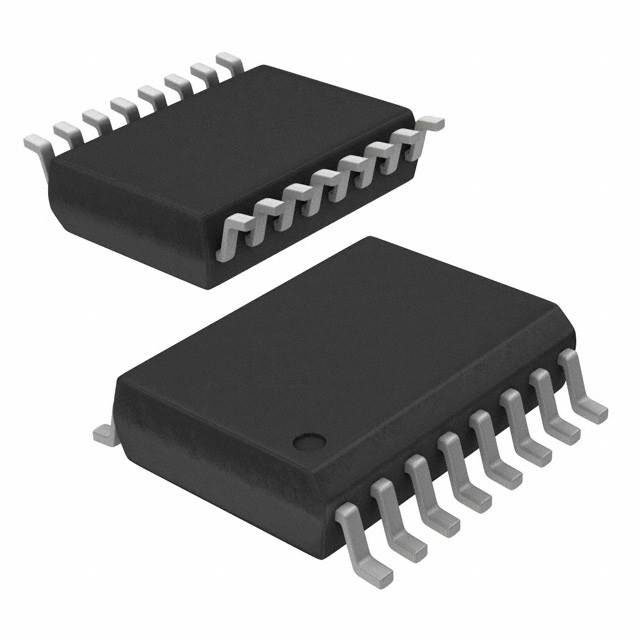

DGTL ISOLTR 2.5KV 4CH GP 16-SOIC
| Part | Common Mode Transient Immunity (Min) | Isolated Power | Operating Temperature (Max) | Operating Temperature (Min) | Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Mounting Type | Data Rate | Technology | Package Length | Package Name | Package Width | Inputs - Side 2 | Inputs - Side 1 | Channel Type | Rise Time (Typ) | Fall Time (Typ) | Propagation Delay tpLH (Max) | Propagation Delay tpHL (Max) | Pulse Width Distortion (Max) | Voltage - Isolation | Number of Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NVE Corp/Isolation Products | 30 kV/µs | No | 100 °C | -40 °C | General Purpose | 2.5 V | 5.5 V | Surface Mount | 10 Mbps | Magnetic Coupling | 0.295 in | 16-SOIC | 7.5 mm | 2 | 2 | Unidirectional | 2 ns | 2 ns | 100 ns | 100 ns | 50 ns | 2500 Vrms | 4 |
