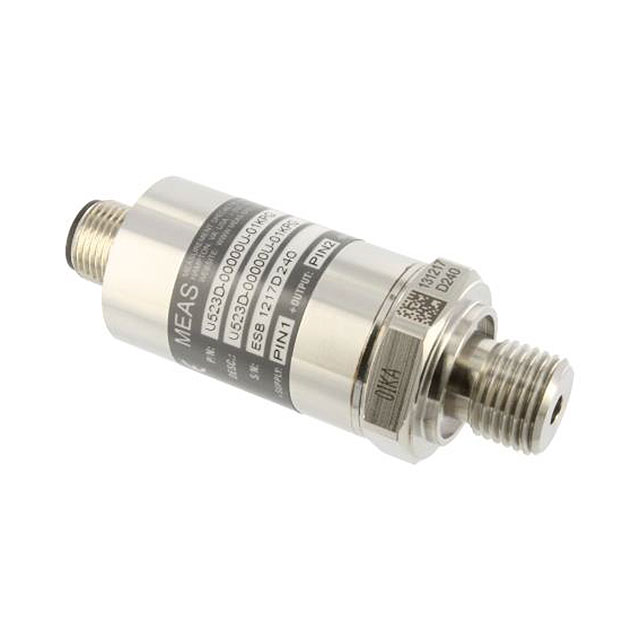

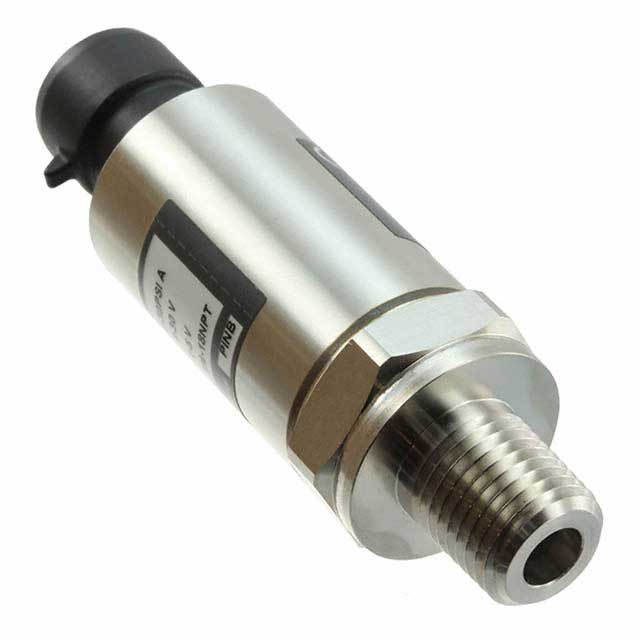

MEAS U5200 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

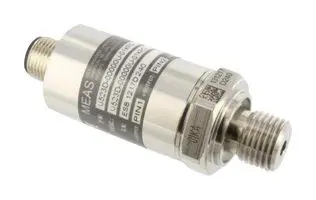

PRESSURE SENSOR 0PSI TO 30PSI ABSOLUTE 3-PIN
| Part | Package / Case | Applications | Port Style | Features | Port Size | Port Size | Port Size | Output [Min] | Output [Max] | Output Type | Termination Style | Accuracy | Operating Pressure | Operating Pressure | Voltage - Supply [Min] | Voltage - Supply [Max] | Maximum Pressure [Max] | Maximum Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Maximum Pressure [Max] | Maximum Pressure | Pressure Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Cylinder | Industrial Automation | Threaded | Temperature Compensated | Male NPT | 0.25 " | 0.25 in | 4 mA | 20 mA | Analog Current | Connector | 0.1 % | 30 PSI | 206.84 kPa | 9 V | 30 VDC | 90 PSI | 620.53 kPa | 125 °C | -40 C | |||
 TE Connectivity AMP Connectors | Cylinder | Industrial Automation | Threaded | Temperature Compensated | BSPP Male | 0.25 " | 0.25 in | 4 mA | 20 mA | Analog Current | Connector | 0.1 % | 203.05 PSI | 1400 kPa | 9 V | 30 VDC | 609.16 PSI | 125 °C | -40 C | 4200 kPa | |||
 TE Connectivity AMP Connectors | Cylinder | Industrial Automation | Threaded | Temperature Compensated | Male NPT | 0.25 " | 0.25 in | 1 V | 5 V | Analog Voltage | Connector | 0.1 % | 200 PSI | 1378.95 kPa | 8 V | 30 VDC | 600 PSI | 125 °C | -40 C | 4136.85 kPa | |||
TE Connectivity AMP Connectors | Cylinder | Industrial Automation | Threaded | Temperature Compensated | Male NPT | 0.25 " | 0.25 in | 1 V | 5 V | Analog Voltage | Connector | 0.1 % | 30 PSI | 206.84 kPa | 8 V | 30 VDC | 90 PSI | 620.53 kPa | 125 °C | -40 C | |||
 TE Connectivity AMP Connectors | Cylinder | Industrial Automation | Threaded | Temperature Compensated | BSPP Male | 0.25 " | 0.25 in | 4 mA | 20 mA | Analog Current | Connector | 0.1 % | 29.01 PSI | 2 bar | 9 V | 30 VDC | 87.02 PSI | 125 °C | -40 C | 600 kPa | |||
 TE Connectivity AMP Connectors | Cylinder | Industrial Automation | Threaded | Temperature Compensated | BSPP Male | 0.25 " | 0.25 in | 4 mA | 20 mA | Analog Current | Connector | 0.5 % | 2.03 PSI | 14 kPa | 9 V | 30 VDC | 42 kPa | 125 °C | -40 C | 6.09 PSI | Vented Gauge | ||
TE Connectivity AMP Connectors | Cylinder | Industrial Automation | Threaded | Temperature Compensated | Male NPT | 0.25 " | 0.25 in | 4 mA | 20 mA | Analog Current | Connector | 0.1 % | 200 PSI | 1378.95 kPa | 9 V | 30 VDC | 600 PSI | 125 °C | -40 C | 4136.85 kPa | |||
TE Connectivity AMP Connectors | Cylinder | Industrial Automation | Threaded | Temperature Compensated | Male NPT | 0.25 " | 0.25 in | 4 mA | 20 mA | Analog Current | Connector | 0.25 % | 5 PSI | 34.47 kPa | 9 V | 30 VDC | 103.42 kPa | 125 °C | -40 C | 15 PSI | Vented Gauge |
