MEAS SM Series

Catalog

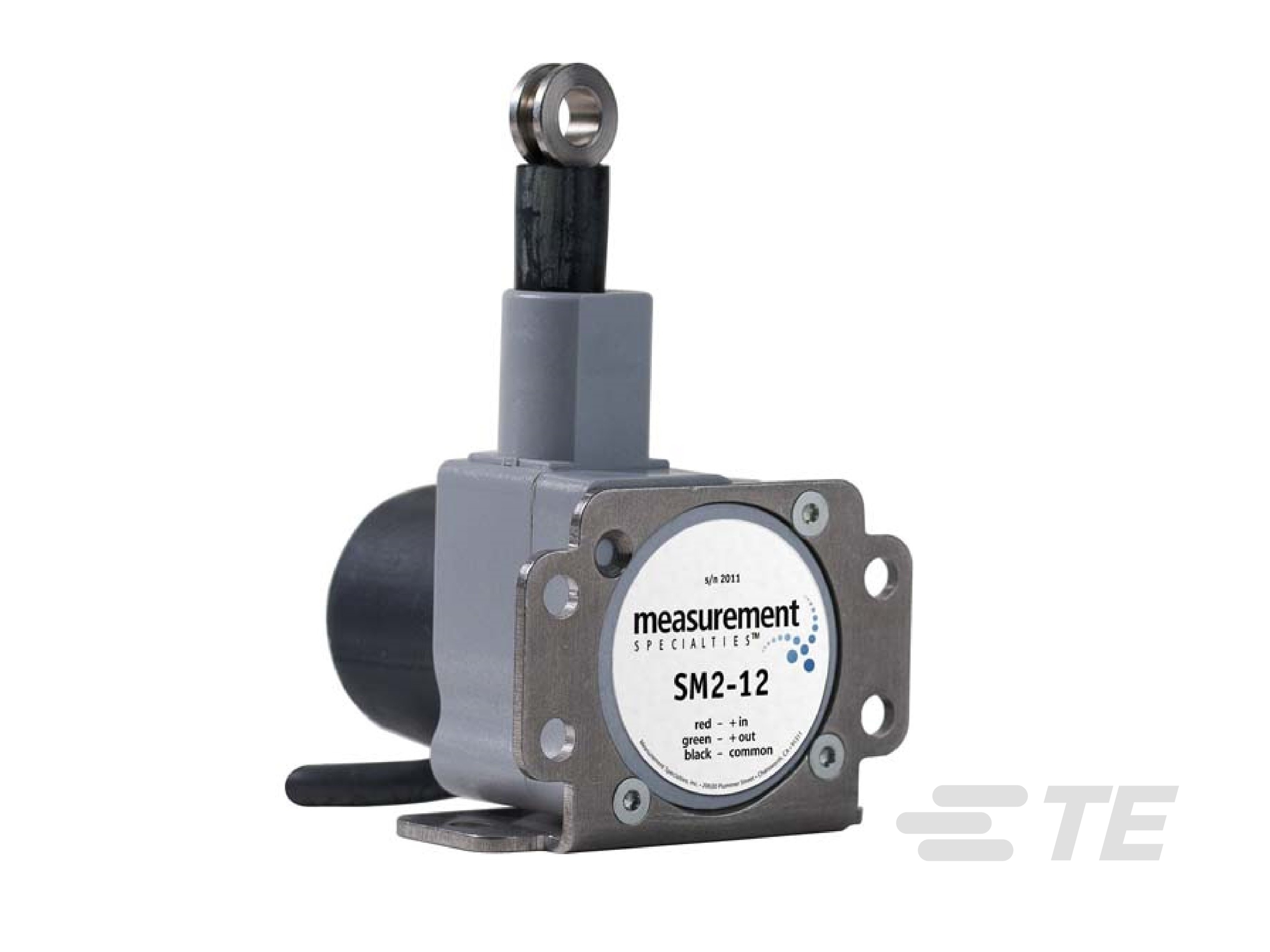

STRING POT, 12.5 INCH RANGE

Part	Actuator Type	Mounting Type	Resistance	Linear Range [Max]	Linear Range [Min]	Linear Range [Max]	Linear Range [Min]	For Measuring	Resistance Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Linearity	Output	Termination Style	Voltage - Supply	Package / Case	Technology
TE Connectivity AMP Connectors SM2-12
TE Connectivity AMP Connectors SM1-25	String Potentiometer	Chassis Mount	10000 Ohms	635 mm	0 mm	25 "	0 "	Linear Position	10%	71 °C	-18 °C	0.25 %	Resistive	Solder Lug	30 VDC	Module
TE Connectivity AMP Connectors SM2-7	String Potentiometer	Chassis Mount	10000 Ohms	191 mm	0 mm	7.52 in	0 "	Linear Position	10%	71 °C	-18 °C	0.25 %	Resistive	Wire Leads	30 VAC/DC	Module	Resistive
TE Connectivity AMP Connectors SM1-12	String Potentiometer	Chassis Mount	10000 Ohms	3175 mm	0 mm	125 in	0 "	Linear Position	10%	71 °C	-18 °C	0.25 %	Resistive	Solder Lug	30 VDC	Module
TE Connectivity AMP Connectors SM1-7		Panel Mount	10000 Ohms	191 mm	0 mm	7.52 in	0 "	Linear Position	±1%	70 °C	-18 °C	0.25 %	Analog Voltage	Solder Lug	30 VDC	Box with Connector
TE Connectivity AMP Connectors SM1-2
TE Connectivity AMP Connectors SM2-25	String Potentiometer	Chassis Mount	10000 Ohms	635 mm	0 mm	25 "	0 "	Linear Position	10%	71 °C	-18 °C	0.25 %	Resistive	Wire Leads	30 VAC/DC	Module	Resistive
TE Connectivity AMP Connectors SM2-2
