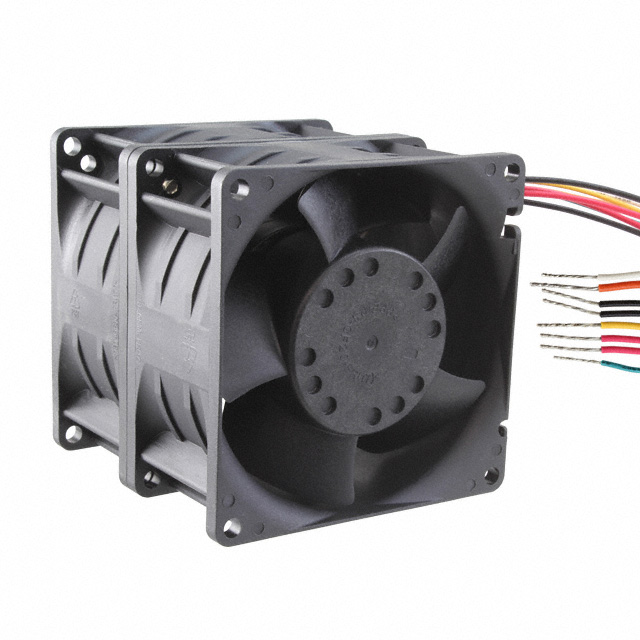

GFC0812 Series
Manufacturer: Delta Electronics
Beta
⌘K

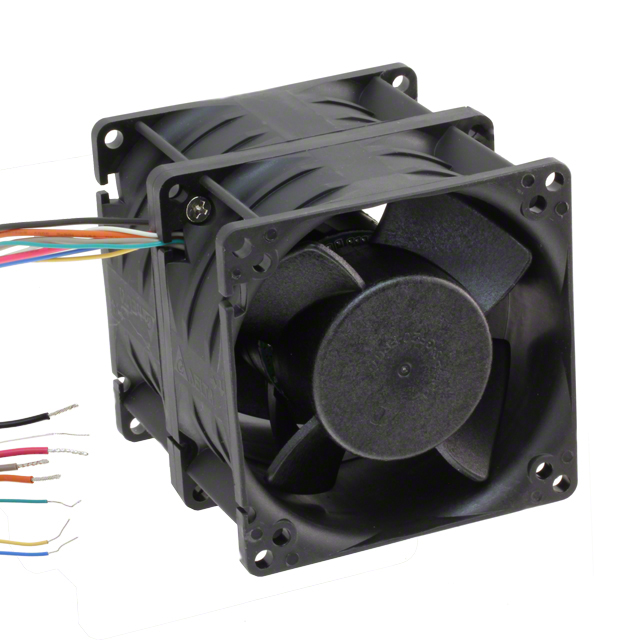

DC FANS DC TUBEAXIAL FAN, 3-PHASE, 80X80X80MM, 12VDC, 4.17MMAQ, 4X WIRE, TACH/PWM
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Material - Frame | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow | Features | Voltage - Rated | Width [y] | Fan Type | Approval Agency | Termination | Noise | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | RPM [custom] | RPM [custom] | Power (Watts) | Static Pressure | Static Pressure | Weight | Weight | Width [x] | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 10.8 VDC | 12.6 VDC | 5.2 A | 70000 Hrs | Plastic | Plastic | 80 mm | 80 mm | 4.68 m³/min | 167 CFM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 12 VDC | 80 mm | Tubeaxial (Dual) | CE cURus TUV | 4 | 74.5 dB(A) | Ball | -10 °C | 60 °C | 10500 RPM | 12000 RPM | 62.4 W | 4.17 in H2O | 1038.7 Pa | 0.851 lb | 386.01 g | |||
 Delta Electronics | 7 V | 15 V | 6.2 Amps | 70000 Hrs | Plastic | Plastic | 80 mm | 80 mm | 4.9 mł/min | 175 CFM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 12 VDC | 80 mm | Tubeaxial (Dual) | CE cURus TUV | 4 | 76.5 dB(A) | Ball | -10 °C | 70 °C | 11000 RPM | 12500 RPM | 74.4 W | 4.47 in H2O | 1113.4 Pa | |||||
 Delta Electronics | 10.8 VDC | 12.6 VDC | 8.27 A | 70000 Hrs | Plastic | Plastic | 80 mm | 80 mm | 4.96 m³/min | 177.1 CFM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 12 VDC | Tubeaxial (Dual) | CE cURus TUV | 4 | 80 dB(A) | Ball | -10 °C | 60 °C | 11000 RPM | 13500 RPM | 99.24 W | 4.502 in H2O | 1121.4 Pa | 0.855 lb | 387.82 g | 76 mm | |||
 Delta Electronics | 10.8 VDC | 12.6 VDC | 5.8 A | 70000 Hrs | Plastic | Plastic | 80 mm | 80 mm | 4.63 m³/min | 165.3 CFM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 12 VDC | 80 mm | Tubeaxial (Dual) | CE cURus TUV | 4 | 76.7 dB(A) | Ball | -10 °C | 70 °C | 10500 RPM | 12000 RPM | 69.9 W | 3.99 in H2O | 993.9 Pa | 0.904 lb | 410.05 g | |||
 Delta Electronics | 10.8 VDC | 12.6 VDC | 2.17 A | 40 °C 50000 Hrs | Plastic | Plastic | 80 mm | 80 mm | 2.52 m³/min | 90 CFM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 12 VDC | 56 mm | Tubeaxial (Dual) | CE cURus TUV | 4 | 72.6 dB(A) | Ball | -10 °C | 60 °C | 10500 RPM | 12000 RPM | 26.04 W | 3.827 in H2O | 953.3 Pa | 340.19 g | 0.75 lb |
