Pts8150 Series Series

4.20 x 3.20 Tact Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

4.20 x 3.20 Tact Switch for SMT

Part	Outline [y]	Outline [x]	Ingress Protection	Circuit	Actuator Type	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mounting Type	Contact Rating @ Voltage	Mechanical Life	Actuator Orientation	Switch Travel	Illumination	Termination Style	Operating Force
Littelfuse/Commercial Vehicle Products PTS815SJM250SMTRLFS	3.2 mm	4.2 mm	IP40	SPST-NO	Oval Button	2.5 mm	90 °C	-40 °C	Off-Mom	Surface Mount	0.05 A 12 VDC	100000 Cycles	Top Actuated	0.2 mm	Non-Illuminated	J Lead	180 gf
Littelfuse/Commercial Vehicle Products PTS815 SJG 250 SMTR LFS	3.2 mm	4.2 mm	IP40	SPST-NO	Oval Button	2.5 mm	90 °C	-40 °C	Off-Mom	Surface Mount	0.05 A 12 VDC	100000 Cycles	Top Actuated	0.2 mm	Non-Illuminated	J Lead	400 gf

Catalog

4.20 x 3.20 Tact Switch for SMT

Key Features

• 4.20 x 3.20 form factor

• Hard actuator in 2.50 mm height

• IP40

Description

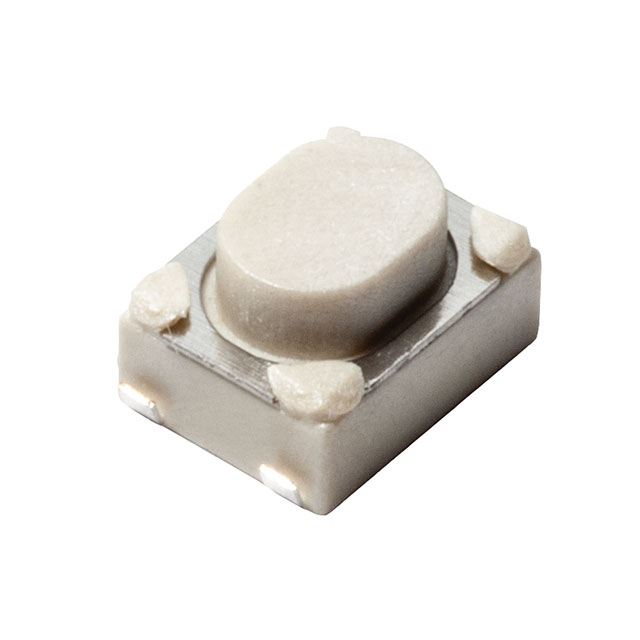

The PTS815 series is a small 4.2 x 3.2 form factor in SMT version with 2.50 mm height and 3 available actuation forces, ideal for general usage applications.
