BCD 400 Series

Catalog

BOX ABS GRAY 15.75"L X 13.31"W

Part	Thickness	Thickness	Container Type	Features	Material Flammability Rating	Area (L x W) [custom]	Area (L x W) [custom]	Color	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Design	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [z]	Type	Size / Dimension [z]	Size / Dimension [y]	Height [z]	Height [z]

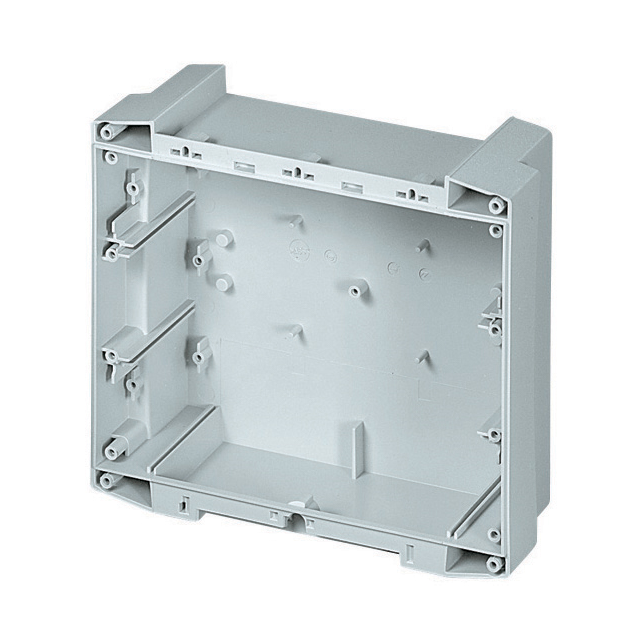

Bopla Enclosures BCD 400 UT-7035	0.177 in	4.5 mm	Box	Card Guides PCB Supports	UL94 HB	1355 cm²	210 in²	Gray	ABS Plastic	400 mm	338 mm	13.307 in	15.748 in	Open End(s)
Bopla Enclosures BCD 400 KRD-7035								Gray	Plastic Polycarbonate	390 mm	83 mm	3.268 "	15.354 "		BOCARD 400 System	0.787 "	20 mm	Cover Lid
Bopla Enclosures BCD 400 OT-FSC-7024				Hinged				Gray	Plastic Polycarbonate	404 mm		13.543 in	15.905 in		BOCARD 400 System	1.476 "		Cover Lid	37.5 mm	344 mm

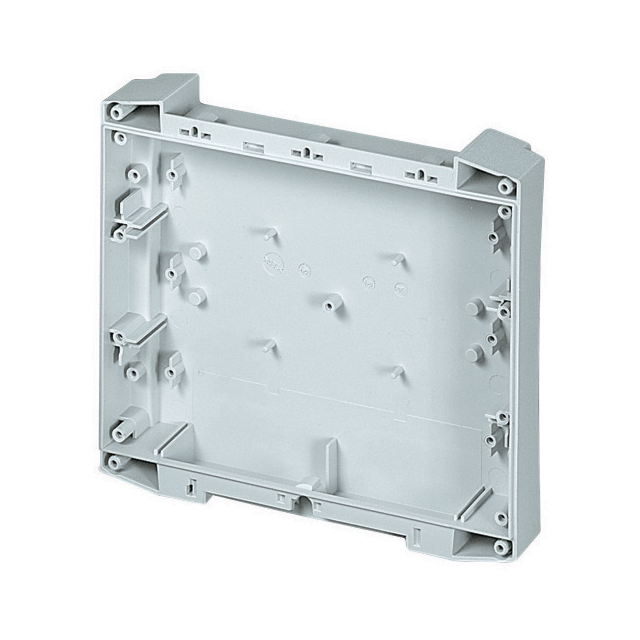

Bopla Enclosures BCD 400 UT-0.5-7035	0.177 in	4.5 mm	Box	Card Guides PCB Supports	UL94 HB	1355 cm²	210 in²	Gray	ABS Plastic	400 mm	338 mm	13.307 in	15.748 in	Open End(s)							2.815 in	71.5 mm
Bopla Enclosures BCD 400 OT-FSC-7035				Hinged				Gray	Plastic Polycarbonate	404 mm		13.543 in	15.905 in		BOCARD 400 System	1.476 "		Cover Lid	37.5 mm	344 mm
Bopla Enclosures BCD 400 OT-G-7024				Hinged				Clear Gray Frame	Plastic Polycarbonate	404 mm		13.543 in	15.905 in		BOCARD 400 System	1.476 "		Cover Lid	37.5 mm	344 mm
Bopla Enclosures BCD 400 OT-G-7035				Hinged				Clear Gray Frame	Plastic Polycarbonate	404 mm		13.543 in	15.905 in		BOCARD 400 System	1.476 "		Cover Lid	37.5 mm	344 mm
Bopla Enclosures BCD 400 KRD-7024								Gray	Plastic Polycarbonate	390 mm	83 mm	3.268 "	15.354 "		BOCARD 400 System	0.787 "	20 mm	Cover Lid
