2007788 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

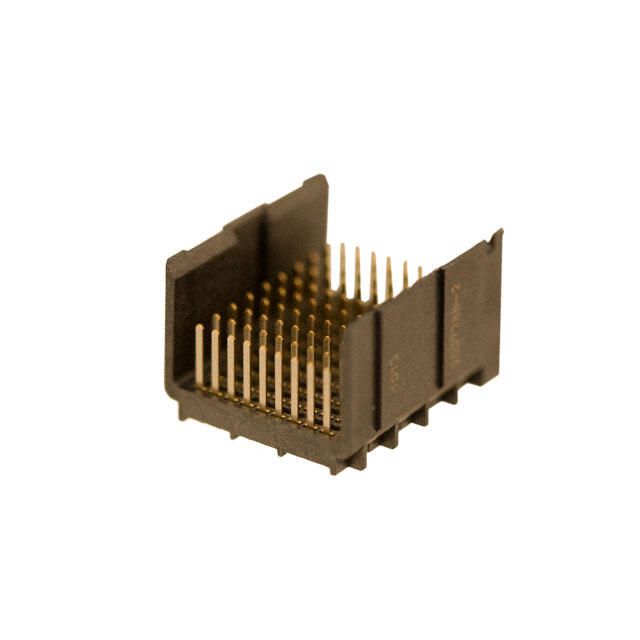

CONN HEADER IMPACT 90POS PCB
| Part | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Connector Usage | Termination | Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Material Flammability Rating | Contact Finish | Number of Columns | Connector Style | Connector Type | Number of Positions | Number of Rows | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.075 in | 1.91 mm | 0.76 Ám | 30 Áin | All | Daughtercard | Press-Fit | Black | 85 °C | -55 °C | Through Hole | UL94 V-0 | Gold | 10 | Impact | Header Male Pins | 90 | 9 | |
TE Connectivity Raychem Cable Protection | 0.075 in | 1.91 mm | 0.76 Ám | 30 Áin | All | Daughtercard | Press-Fit | Black | 85 °C | -55 °C | Through Hole | UL94 V-0 | Gold | 10 | Impact | Header Male Pins | 90 | 9 | 30 VAC |
