227661 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

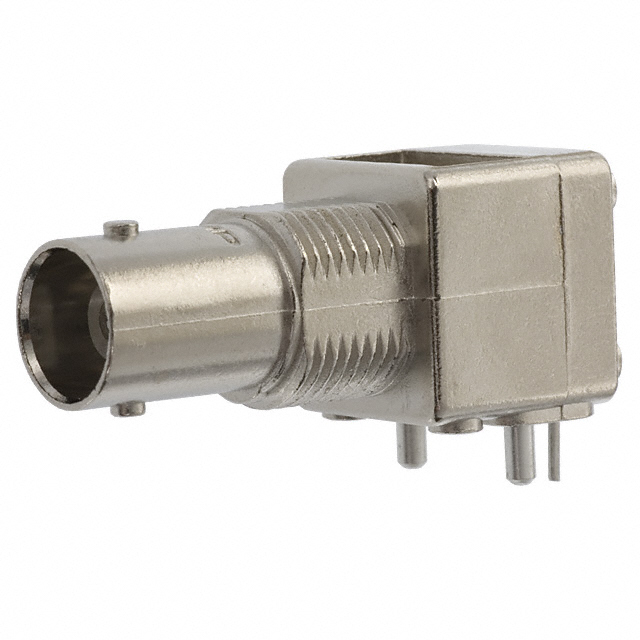

BNC PCB RT ANGLE
| Part | Center Contact Plating | Impedance | Connector Type | Contact Termination | Voltage Rating | Mounting Type | Shield Termination | Housing Color | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Material | Mating Cycles | Body Finish | Frequency - Max [Max] | Fastening Type | Dielectric Material | Connector Style | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 50 Ohms | Female Socket Jack | Solder | 500 V | Panel Mount Right Angle Through Hole | Solder | Silver | 1 | 85 °C | -55 °C | Zinc | Phosphor Bronze | 500 | Nickel | 4 GHz | Bayonet Lock | Polymethylpentene (PMP) | BNC | Bulkhead - Front Side Nut |
