399-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 35POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Contact Type	Contact Finish - Mating	Contact Finish - Post	Number of Positions	Fastening Type	Mounting Type
Mill-Max Manufacturing Corp. 399-13-135-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	35	Push-Pull	Right Angle Through Hole
Mill-Max Manufacturing Corp. 399-13-148-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	48	Push-Pull	Right Angle Through Hole
Mill-Max Manufacturing Corp. 399-13-139-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	39	Push-Pull	Right Angle Through Hole

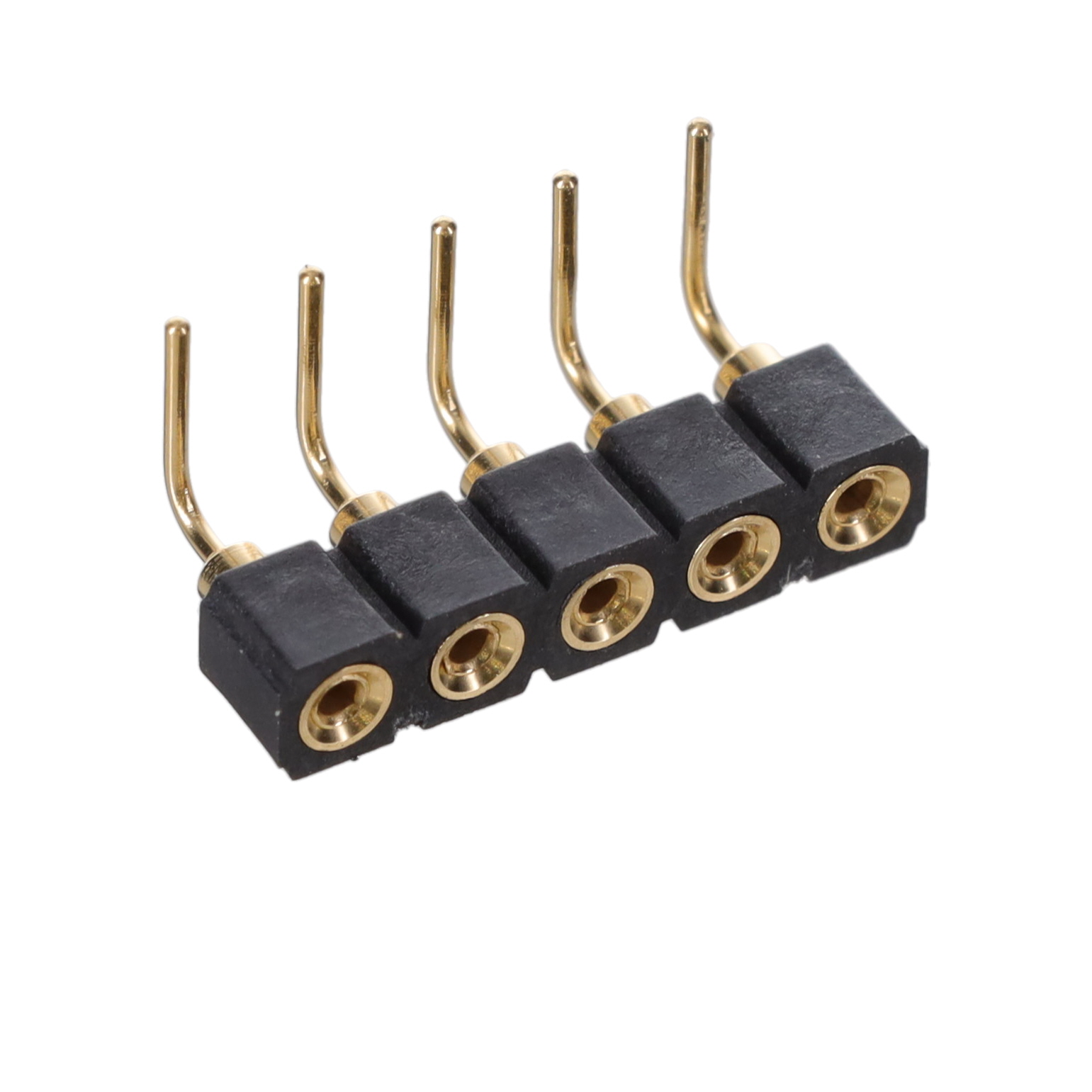

Mill-Max Manufacturing Corp. 399-13-105-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	5	Push-Pull	Right Angle Through Hole
Mill-Max Manufacturing Corp. 399-13-158-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	58	Push-Pull	Right Angle Through Hole
Mill-Max Manufacturing Corp. 399-13-144-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	44	Push-Pull	Right Angle Through Hole
Mill-Max Manufacturing Corp. 399-13-101-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	1	Push-Pull	Right Angle Through Hole
Mill-Max Manufacturing Corp. 399-13-125-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	25	Push-Pull	Right Angle Through Hole
Mill-Max Manufacturing Corp. 399-13-108-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	8	Push-Pull	Right Angle Through Hole
Mill-Max Manufacturing Corp. 399-13-116-10-003000	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.1 "	2.54 mm	Receptacle	UL94 V-0	0.126 "	3.2 mm	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	1	3 A	-55 C	125 °C	All	Solder	Female Socket	Gold	Gold	16	Push-Pull	Right Angle Through Hole
