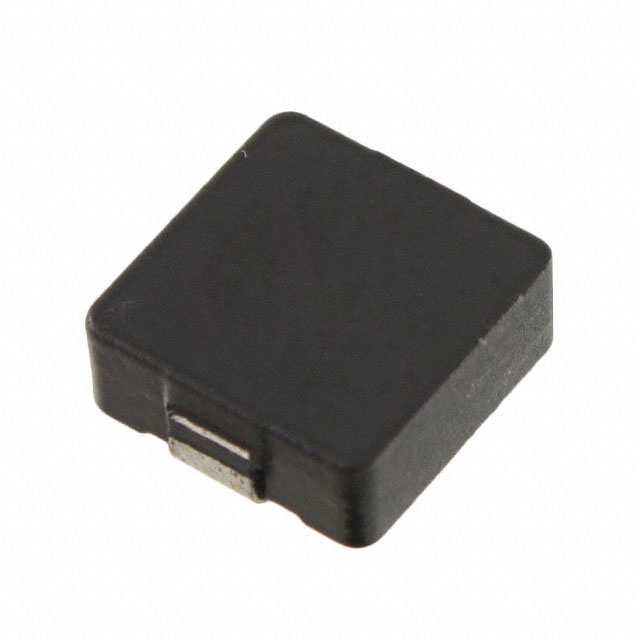

HCM1305 Series
Power Inductors - SMD 1.0uH 50A SMD HIGH CURRENT
Manufacturer: Eaton - Electronics Division
Catalog
Power Inductors - SMD 1.0uH 50A SMD HIGH CURRENT
Beta
⌘K
Power Inductors - SMD 1.0uH 50A SMD HIGH CURRENT
Power Inductors - SMD 1.0uH 50A SMD HIGH CURRENT
Power Inductors - SMD 1.0uH 50A SMD HIGH CURRENT
| Part | Mounting Type | Inductance Frequency - Test | Current - Saturation (Isat) | Type | DC Resistance (DCR) [Max] | Tolerance | Material - Core | Inductance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Current Rating (Amps) | Shielding | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Surface Mount | 100 kHz | 50 A | Drum Core Wirewound | 2.42 mOhm | 20 % | Iron Powder | 1 µH | 12.2 mm | 13.3 mm | 0.48 in | 0.524 " | 0.197 in | 5 mm | Nonstandard | 29 A | Shielded | -55 C | 125 °C |
