EEM02 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 4POS 0.156

Part	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Mounting Type	Features	Color	Contact Type	Contact Finish	Contact Material	Pitch	Pitch	Termination	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Card Thickness	Card Thickness	Read Out	Number of Positions/Bay/Row	Gender
Sullins Connector Solutions EEM02DRKN-S13	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Board Edge Straddle Mount	Card Extender	Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Dual	2	Female
Sullins Connector Solutions EEM02DRTN	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Through Hole		Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Dual	2	Female
Sullins Connector Solutions EEM02DRXN	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Through Hole		Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Dual	2	Female

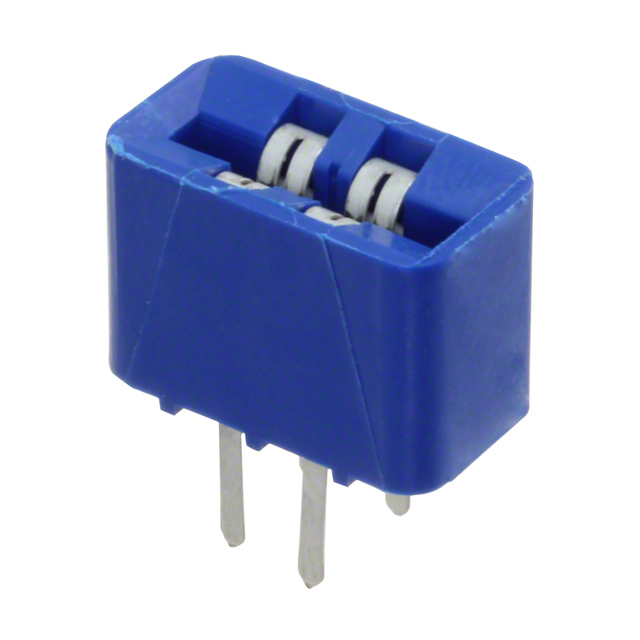

Sullins Connector Solutions EEM02DRUN	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Through Hole		Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Dual	2	Female
Sullins Connector Solutions EEM02DSEN	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Free Hanging (In-Line)		Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder Eyelet(s)	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Dual	2	Female
Sullins Connector Solutions EEM02DRTN-S13	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Board Edge Straddle Mount	Card Extender	Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Dual	2	Female
Sullins Connector Solutions EEM02DSEN-S243	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Free Hanging (In-Line)		Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder Eyelet(s)	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Single	2	Female
Sullins Connector Solutions EEM02DREN	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Free Hanging (In-Line)		Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder Eyelet(s)	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Dual	2	Female
Sullins Connector Solutions EEM02DSUN	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Non Specified - Dual Edge	Through Hole		Blue	Full Bellows	Tin	Phosphor Bronze	3.96 mm	0.156 in	Solder	2	2.54 µm	100 µin	4	1.57 mm	0.062 in	Single	2	Female
