1ED332 Series
Manufacturer: INFINEON
Beta
⌘K
THE 1ED3323MC12N IS A 8.5 A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER (DSO-16 WIDE BODY PACKAGE)
| Part | Package / Case | Package / Case | Approval Agency | Propagation Delay tpLH / tpHL (Max) [Max] [custom] | Propagation Delay tpLH / tpHL (Max) [Max] [custom] | Supplier Device Package | Current - Peak Output | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Technology | Voltage - Isolation | Mounting Type | Voltage - Output Supply | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Common Mode Transient Immunity (Min) [Min] | Number of Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

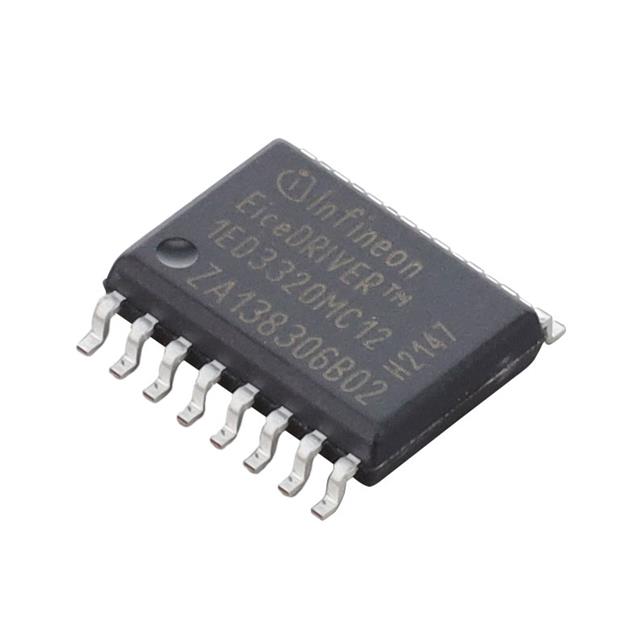

 INFINEON | 16-SOIC | 0.154 in 3.9 mm | UL | 84 ns | 92 ns | PG-DSO-16-40 | 9 A | 125 °C | -40 °C | 8.5 A | 6 A | Magnetic Coupling | 5700 Vrms | Surface Mount | 40 V | 15 ns | 15 ns | 300 kV/µs | 1 |

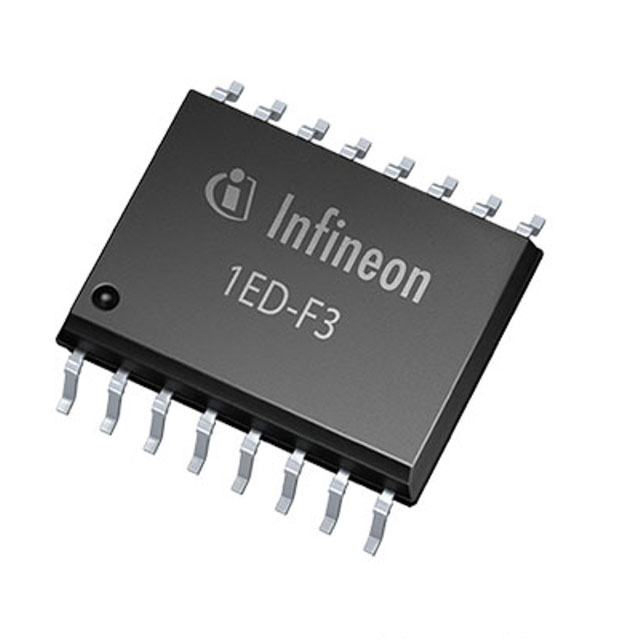

 INFINEON | 16-SOIC | 0.154 in 3.9 mm | UL | 84 ns | 92 ns | PG-DSO-16-40 | 9 A | 125 °C | -40 °C | 8.5 A | 6 A | Magnetic Coupling | 5700 Vrms | Surface Mount | 40 V | 15 ns | 15 ns | 300 kV/µs | 1 |
 INFINEON | 16-SOIC | 0.154 in 3.9 mm | UL | 84 ns | 92 ns | PG-DSO-16-40 | 5 A | 125 °C | -40 °C | 6 A | 3.3 A | Magnetic Coupling | 5700 Vrms | Surface Mount | 40 V | 15 ns | 15 ns | 300 kV/µs | 1 |
