GBE32 Series

Catalog

CONN PCI EXP FMALE 64POS 0.039

Part	Material - Insulation	Contact Material	Gender	Contact Finish	Number of Positions	Pitch	Pitch	Mounting Type	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Features	Number of Rows [custom]	Color

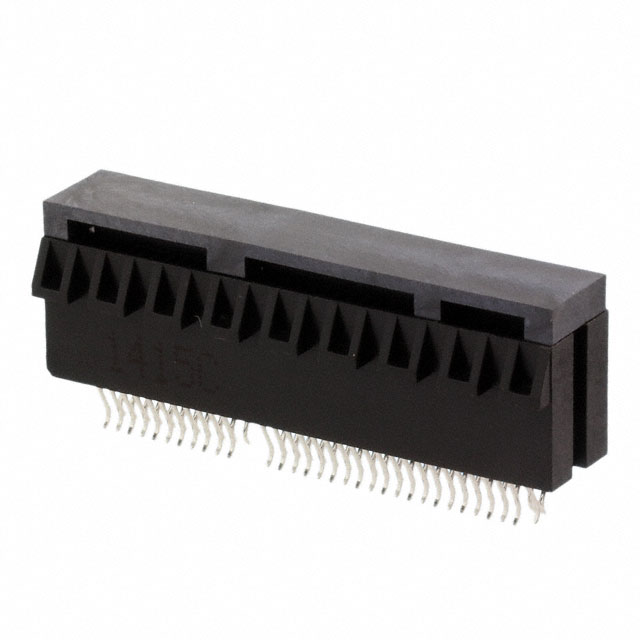

Sullins Connector Solutions GBE32DHRN-T941	Polyamide (PA9T) Nylon 9T	Phosphor Bronze	Female	Gold	64	1 mm	0.039 in	Board Edge Straddle Mount	1.57 mm	0.062 in	0.25 Ám	10 Áin	Dual	Solder	PCI Express™	85 °C	-10 °C	Cantilever	Cap Card Extender Locking Ramp	2	Black

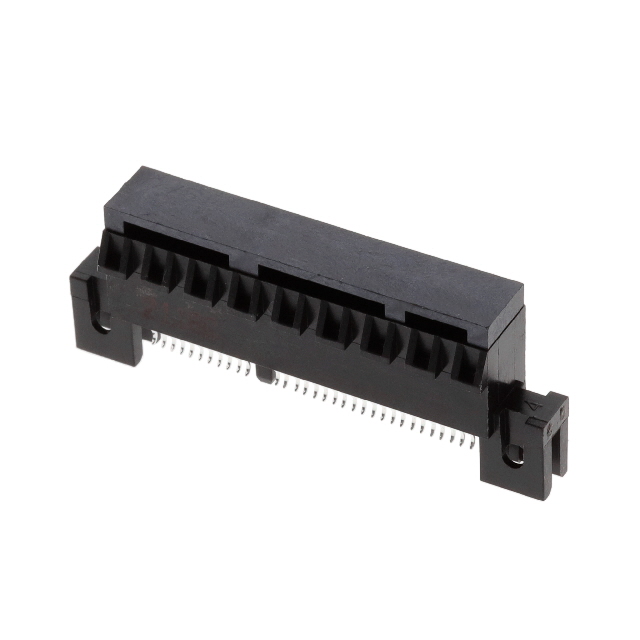

Sullins Connector Solutions GBE32DHRQ-T941	Polyamide (PA9T) Nylon 9T	Phosphor Bronze	Female	Gold	64	1 mm	0.039 in	Board Edge Straddle Mount	1.57 mm	0.062 in	0.25 Ám	10 Áin	Dual	Solder	PCI Express™	125 °C	-65 ░C	Hairpin Bellows	Card Extender	2
Sullins Connector Solutions GBE32DHRN-T9410
