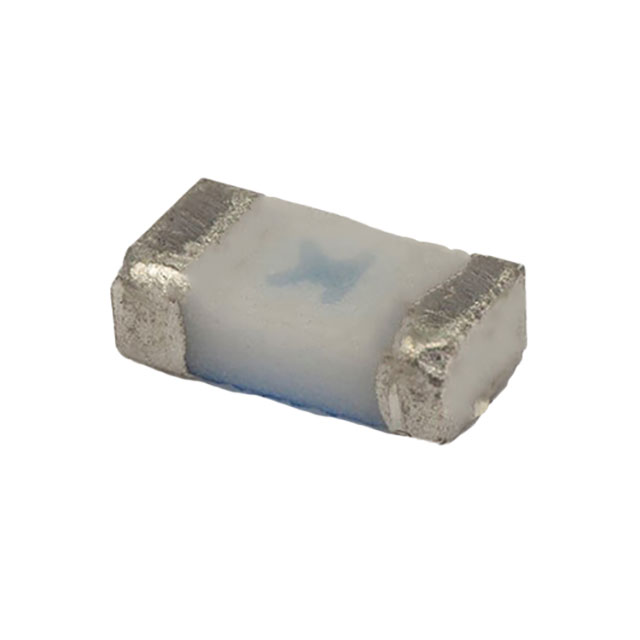

0603HV Series

Surface Mount Fuses 1.5A 63V FAST ACTING

Manufacturer: Eaton - Electronics Division

Catalog

Surface Mount Fuses 1.5A 63V FAST ACTING

Catalog

Surface Mount Fuses 1.5A 63V FAST ACTING

Part	DC Cold Resistance	Current Rating	Approval Agency	Fuse Type	Voltage Rating - DC	Response Time	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Melting I²t	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Package / Case	Breaking Capacity
Eaton - Electronics Division TR-0603HV1-25-R	0.132 Ohms	1.25 A	CQC UL	Board Mount (Cartridge Style Excluded)	63 V	Fast Blow	Surface Mount	125 °C	-55 °C	0.008	0.063 in	0.019 in	0.032 in	0603 (1608 Metric)	50 A
Eaton - Electronics Division TR-0603HV750-R	0.51 Ohms	0.75 A	CQC UL	Board Mount (Cartridge Style Excluded)	63 V	Fast Blow	Surface Mount	125 °C	-55 °C	0.003	0.063 in	0.019 in	0.032 in	0603 (1608 Metric)	50 A
Eaton - Electronics Division TR-0603HV1-R	150 mOhms	1 A	CQC UL	Board Mount (Cartridge Style Excluded)	63 V	Fast Blow	Surface Mount	125 °C	-55 °C	0.007	0.063 in	0.019 in	0.032 in	0603 (1608 Metric)	50 A
Eaton - Electronics Division TR-0603HV1-5-R	0.086 Ohms	1.5 A	CQC UL	Board Mount (Cartridge Style Excluded)	63 V	Fast Blow	Surface Mount	125 °C	-55 °C	0.0319	0.063 in	0.019 in	0.032 in	0603 (1608 Metric)	50 A
Eaton - Electronics Division TR-0603HV500-R	1.025 Ohms	0.5 A	CQC UL	Board Mount (Cartridge Style Excluded)	63 V	Fast Blow	Surface Mount	125 °C	-55 °C	0.0019	0.063 in	0.019 in	0.032 in	0603 (1608 Metric)	50 A
