521-26 Series

Manufacturer: CNC Tech

Catalog

CABLE MOD COIL 6COND 5' PRE-CUT

Part	Conductor Material	Conductor Strand [diameter]	Conductor Strand [custom]	Cable Type	Jacket Color	Length - Coil Extended [x]	Length - Coil Extended [x]	Cable Height	Cable Height	Coil Diameter [diameter]	Coil Diameter [diameter]	Wire Gauge	Number of Conductors	Jacket (Insulation) Material	Length - Coil Retracted [x]	Length - Coil Retracted [x]	Shielding	Cable Width	Cable Width	Length - Coil Extended	Length - Coil Extended	Length - Coil Retracted	Length - Coil Retracted	Number of Conductors [custom]
CNC Tech 521-26-06-WH-0005F	Copper Bare	0.0063 in	7	Coil	White	1.52 m	5 ft	0.097 in	2.46 mm	13 mm	0.512 in	26 AWG	6	Poly-Vinyl Chloride (PVC)	0.54 m	1.77 ft	Unshielded	6.8 mm	0.267 in
CNC Tech 521-26-04-SV-014F	Copper Bare	0.0063 in	7	Coil	Silver			0.097 in	2.46 mm	13 mm	0.512 in	26 AWG	4	Poly-Vinyl Chloride (PVC)	0.85 m	2.79 ft	Unshielded	4.8 mm	0.189 in	4.27 m	14 '
CNC Tech 521-26-04-WH-010F	Copper Bare	0.0063 in	7	Coil	White			0.097 in	2.46 mm	13 mm	0.512 in	26 AWG	4	Poly-Vinyl Chloride (PVC)	0.63 m	2.07 '	Unshielded	4.8 mm	0.189 in	3.05 m	10 '
CNC Tech 521-26-04-SV-005F	Copper Bare	0.0063 in	7	Coil	Silver	1.52 m	5 ft	0.097 in	2.46 mm	13 mm	0.512 in	26 AWG	4	Poly-Vinyl Chloride (PVC)			Unshielded	4.8 mm	0.189 in			1.08 ft	0.33 m
CNC Tech 521-26-08-SV-0014F	Copper Bare	0.0063 in	7	Coil	Silver			0.097 in	2.46 mm	15 mm	0.591 in	26 AWG		Poly-Vinyl Chloride (PVC)	1.9 m	6.25 ft	Unshielded	8.8 mm	0.346 in	4.27 m	14 '			8
CNC Tech 521-26-06-BL-0014F	Copper Bare	0.0063 in	7	Coil	Black			0.097 in	2.46 mm	13 mm	0.512 in	26 AWG	6	Poly-Vinyl Chloride (PVC)	1.35 m	4.43 ft	Unshielded	6.8 mm	0.267 in	4.27 m	14 '
CNC Tech 521-26-08-WH-0007F	Copper Bare	0.0063 in	7	Coil	White			0.097 in	2.46 mm	15 mm	0.591 in	26 AWG		Poly-Vinyl Chloride (PVC)	1 m	3.28 ft	Unshielded	8.8 mm	0.346 in	2.13 m	7 ft			8
CNC Tech 521-26-06-BL-005F	Copper Bare	0.0063 in	7	Coil	Black	1.52 m	5 ft	0.097 in	2.46 mm	13 mm	0.512 in	26 AWG	6	Poly-Vinyl Chloride (PVC)	0.54 m	1.77 ft	Unshielded	6.8 mm	0.267 in
CNC Tech 521-26-08-WH-0010F	Copper Bare	0.0063 in	7	Coil	White			0.097 in	2.46 mm	15 mm	0.591 in	26 AWG		Poly-Vinyl Chloride (PVC)	1.5 m	4.92 ft	Unshielded	8.8 mm	0.346 in	3.05 m	10 '			8

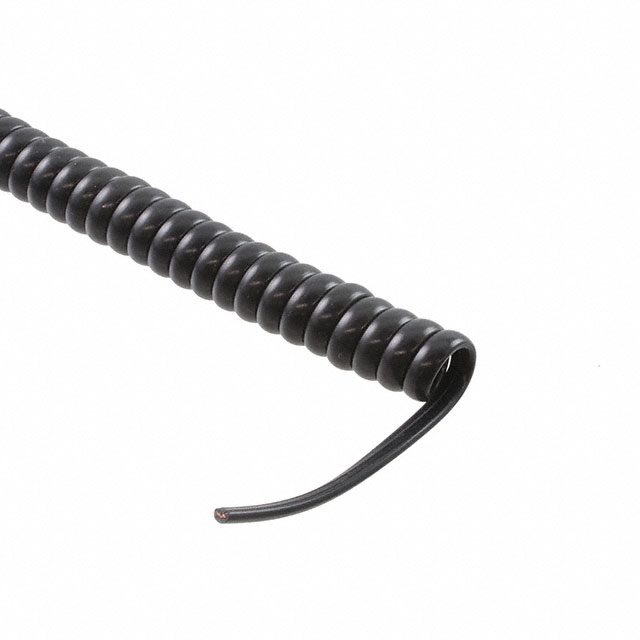

CNC Tech 521-26-04-BL-005F	Copper Bare	0.0063 in	7	Coil	Black	1.52 m	5 ft	0.097 in	2.46 mm	13 mm	0.512 in	26 AWG	4	Poly-Vinyl Chloride (PVC)			Unshielded	4.8 mm	0.189 in			1.08 ft	0.33 m
