SMI 4000 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

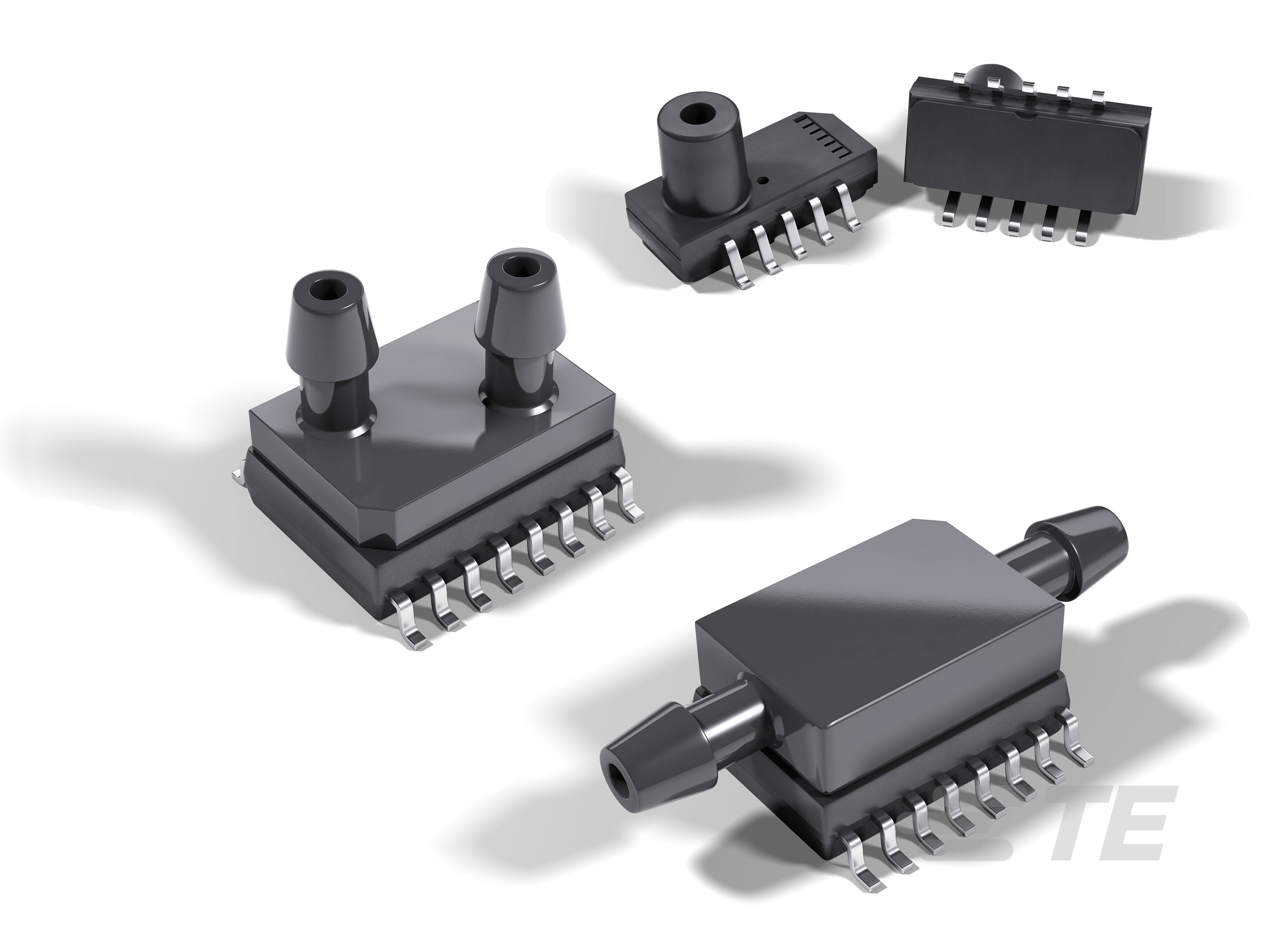

5 PSI DIFFERENTIAL SENSOR

Part	Features	Output	Port Style	Operating Pressure	Operating Pressure	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Accuracy	Port Size	Port Size	Port Size	Pressure Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Termination Style	Mounting Type	Supplier Device Package	Voltage - Supply
TE Connectivity AMP Connectors SM4391-BHQ-T-005-001	Temperature Compensated	16 b	Barbed	15 PSI	103.42 kPa	Board Mount	172.37 kPa	25 PSI	-40 C	105 ░C	1.5 %	11.11 mm	Female Schrader UNF	0.4375 in	Differential Gauge	I2C	4.75 V	5.25 V
TE Connectivity AMP Connectors SM4331-BCE-T-025-000
TE Connectivity AMP Connectors SM4291-BCE-S-005.00-132	Temperature Compensated	16 b	Barbed	15 PSI	103.42 kPa	Board Mount	172.37 kPa	25 PSI	-40 C	105 ░C	1.5 %	11.11 mm	Female Schrader UNF	0.4375 in	Differential Gauge	I2C	4.75 V	5.25 V	16-SOIC Dual Top Ports	0.295 " 7.5 mm Width	Gull Wing	Surface Mount	16-SOIC

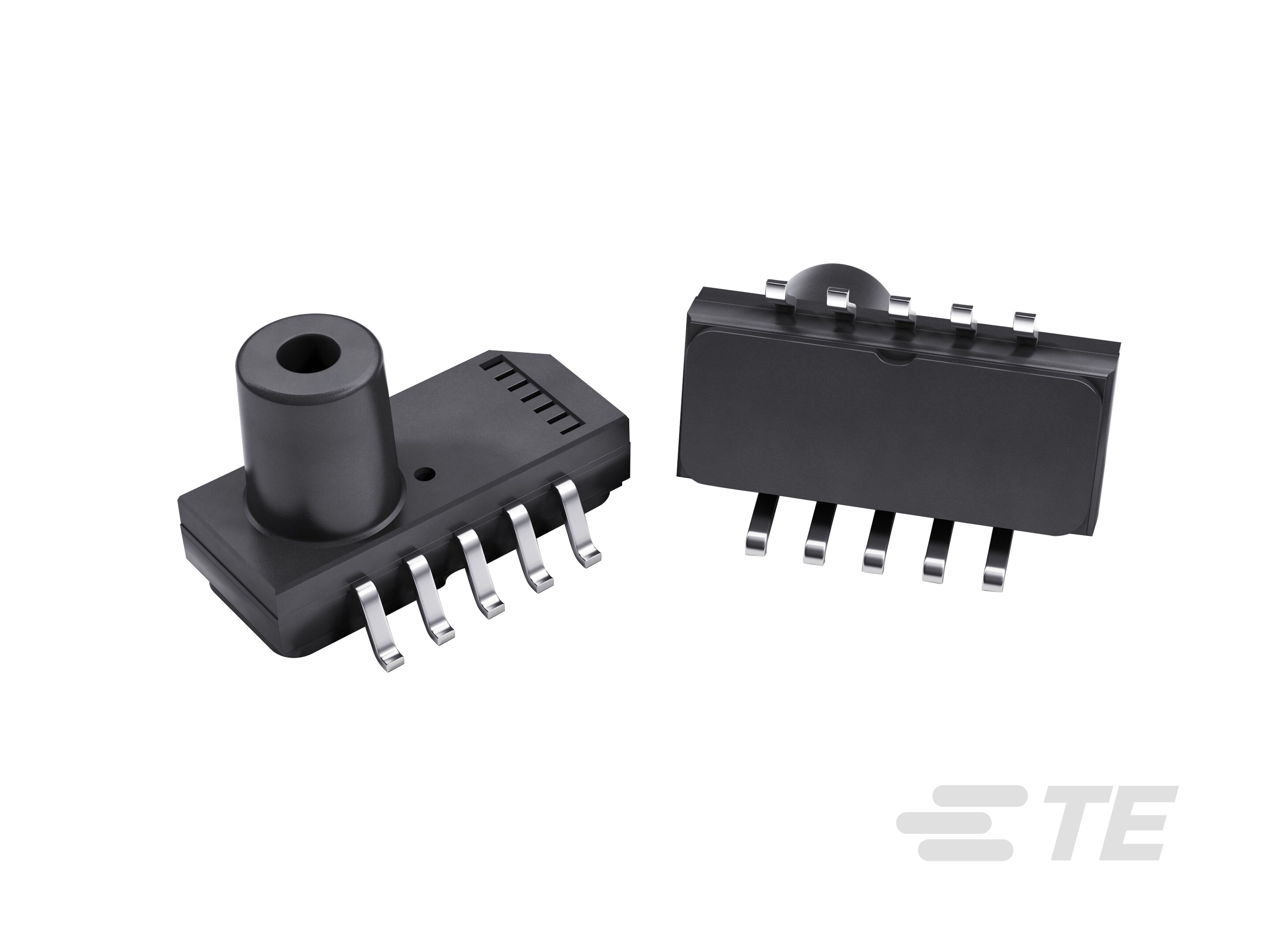

TE Connectivity AMP Connectors SM4291-HGE-S-500-000	Amplified Output Temperature Compensated	16 b	Barbed	-7.25 PSI	-50 kPa		172.37 kPa	25 PSI	-20 ░C	85 °C		3 mm	Male Tube	0.12 in	Gauge	Analog Voltage I2C			10-SOIC Module Top Port		Gull Wing	Surface Mount		3 V
TE Connectivity AMP Connectors SM4291-HGE-T-500-000
TE Connectivity AMP Connectors SM4331-BCE-T-300-000
TE Connectivity AMP Connectors SM4291-BCE-S-005.00-151	Temperature Compensated	16 b	Barbed	15 PSI	103.42 kPa	Board Mount	172.37 kPa	25 PSI	-20 ░C	85 °C	1.5 %	11.11 mm	Female Schrader UNF	0.4375 in	Gauge	Analog Voltage I2C	4.75 V	5.25 V	16-SOIC Dual Top Ports	0.295 " 7.5 mm Width	Gull Wing	Surface Mount	16-SOIC
TE Connectivity AMP Connectors SM4291-BCE-T-005-001	Temperature Compensated	16 b	Barbed	15 PSI	103.42 kPa	Board Mount	172.37 kPa	25 PSI	-20 ░C	85 °C	1.5 %	11.11 mm	Female Schrader UNF	0.4375 in	Gauge	Analog Voltage I2C	4.75 V	5.25 V	16-SOIC Dual Top Ports	0.295 " 7.5 mm Width	Gull Wing	Surface Mount	16-SOIC
