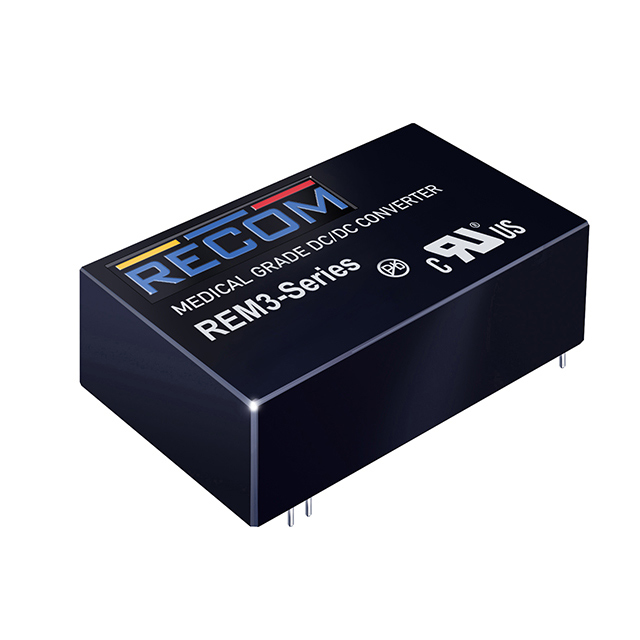

REM3-S_D(W) Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W 18-75VIN 3.3VOUT DIP24
| Part | Features | Power (Watts) | Voltage - Input (Max) [Max] | Applications | Current - Output (Max) [Max] | Package / Case | Mounting Type | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Output 2 | Current - Output (Max) | Control Features | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | OCP OVP Remote On/Off SCP UVLO | 3 W | 75 V | ITE (Commercial) Medical | 1 A | 24-DIP Module 5 Leads | Through Hole | 3.3 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 18 V | 1 | 5000 V | -40 C | 105 ░C | 81 % | |||||
 Recom Power | OCP OVP Remote On/Off SCP UVLO | 3 W | 36 V | ITE (Commercial) Medical | 0.3 A | 24-DIP Module 6 Leads | Through Hole | 5 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 18 V | 2 | 5000 V | -40 C | 105 ░C | 83 % | -5 V | ||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | 3 W | 18 V | ITE (Commercial) Medical | 24-DIP Module 7 Leads | Through Hole | 12 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 9 V | 2 | 5000 V | -40 C | 105 ░C | 87.5 % | -12 V | 125 mA | Active Low Enable | |||
 Recom Power | OCP OVP Remote On/Off SCP UVLO | 3 W | 18 V | ITE (Commercial) Medical | 24-DIP Module 6 Leads | Through Hole | 12 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 9 V | 2 | 5000 V | -40 C | 105 ░C | 87.5 % | -12 V | 125 mA | ||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | 3 W | 18 V | ITE (Commercial) Medical | 1 A | 24-DIP Module 6 Leads | Through Hole | 3.3 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 9 V | 1 | 5000 V | -40 C | 105 ░C | Active Low Enable | |||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | 3 W | 36 V | ITE (Commercial) Medical | 0.3 A | 24-DIP Module 6 Leads | Through Hole | 5 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 9 V | 2 | 5000 V | -40 C | 105 ░C | 83 % | -5 V | ||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | 3 W | 18 V | ITE (Commercial) Medical | 200 mA | 24-DIP Module 6 Leads | Through Hole | 15 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 9 V | 1 | 5000 V | -40 C | 105 ░C | 87 % | Active Low Enable | ||||
Recom Power | OCP OVP SCP UVLO | 3 W | 9 V | ITE (Commercial) Medical | 24-DIP Module 6 Leads | Through Hole | 15 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 4.5 V | 2 | 5000 V | -40 C | 105 ░C | 86 % | -15 V | 100 mA | 100 mA | |||
Recom Power | OCP OVP Remote On/Off SCP UVLO | 3 W | 75 V | ITE (Commercial) Medical | 200 mA | 24-DIP Module 6 Leads | Through Hole | 15 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 18 V | 1 | 5000 V | -40 C | 105 ░C | 86.5 % | Active Low Enable | ||||
Recom Power | OCP OVP SCP UVLO | 3 W | 9 V | ITE (Commercial) Medical | 24-DIP Module 6 Leads | Through Hole | 12 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Isolated Module | 4.5 V | 2 | 5000 V | -40 C | 105 ░C | 86 % | -12 V | 125 mA |
