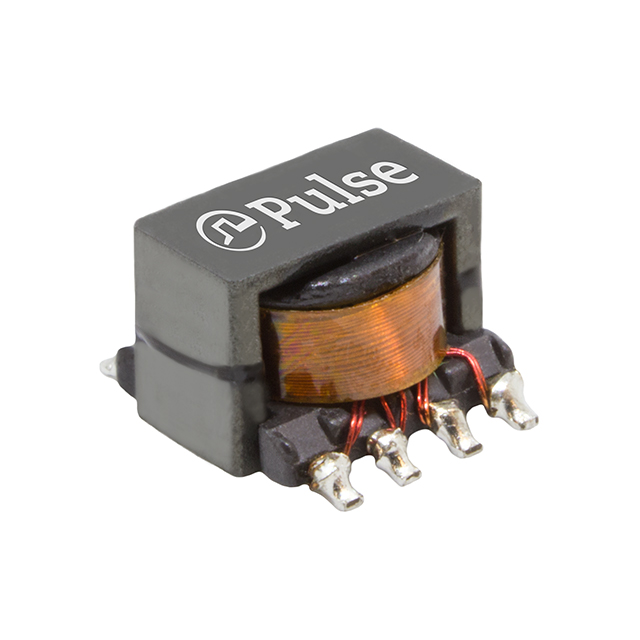

PA4470 Series

Catalog

POWER TRANSFORMERS 6W 21.8UH 200-700KHZ 10-14V FLYBACK

Part	Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Frequency	Footprint [x]	Footprint [y]	Footprint [y]	Footprint [x]	Mounting Type	Voltage - Auxiliary	Voltage - Primary [Max]	Voltage - Primary [Min]	Operating Temperature [Max]	Operating Temperature [Min]
Pulse Electronics PA4470.004NLT	For DC/DC Converters	6 mm	0.236 "	200 kHz	0.315 in	0.374 in	9.5 mm	8 mm	Surface Mount	10 V 50 mA	57 V	33 V	130 °C	-40 C
