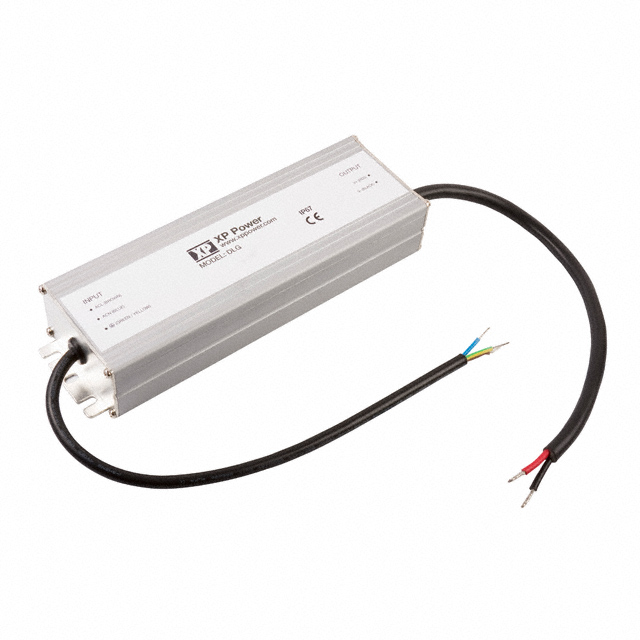

DLG100 Series

Manufacturer: XP Power

Catalog

LED DRIVER CC/CV AC/DC 36V 2.8A

Part	Mounting Type	Weight [custom]	Weight [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Approval Agency	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Termination Style	Voltage - Isolation	Type	Voltage - Output	Number of Outputs	Weight	Weight	Ratings	Voltage - Output [Max]	Voltage - Output [Min]
XP Power DLG100PS36	Chassis Mount	2.3 lbs	1 kg	OTP OVP SCP	-30 ░C	70 °C	AC DC Converter	CE EN IEC UL	2.8 A	100 W	90 VAC	305 VAC	39 mm	8.74 in	68 mm	2.68 in	222 mm	1.54 in	90 %	Wire Leads	3750 VDC	Constant Current Voltage	36 V	1
XP Power DLG100PS12	Chassis Mount	2.3 lbs	1 kg	OTP OVP SCP	-30 ░C	70 °C	AC DC Converter	CE EN IEC UL	8.3 A	100 W	90 VAC	305 VAC	39 mm	8.74 in	68 mm	2.68 in	222 mm	1.54 in	88 %	Wire Leads	3750 VDC	Constant Current Voltage	12 V	1
XP Power DLG100PS800-A	Chassis Mount			OCP OVP SCP	-30 ░C	70 °C	AC DC Converter	CE UL	0.8 A	100 W	90 VAC	305 VAC	37 mm	7.8 in	57 mm	2.24 in	198 mm	1.46 in	91 %	Wire Leads	3750 VDC	Constant Current		1	1.7 lbs	771.1 g	IP67	142 V	100 V
XP Power DLG100PS24	Chassis Mount	2.3 lbs	1 kg	OTP OVP SCP	-30 ░C	70 °C	AC DC Converter	CE EN IEC UL	4.2 A	100 W	90 VAC	305 VAC	39 mm	8.74 in	68 mm	2.68 in	222 mm	1.54 in	90 %	Wire Leads	3750 VDC	Constant Current Voltage	24 V	1
