CCG6 Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 6W 12VIN 3VOUT SINGLE SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Current - Output (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Features	Type	Voltage - Input (Max) [Max]	Mounting Type	Standard Number	Number of Outputs	Voltage - Isolation	Control Features	Voltage - Output 1	Approval Agency	Efficiency	Voltage - Output 2	Current - Output (Max)

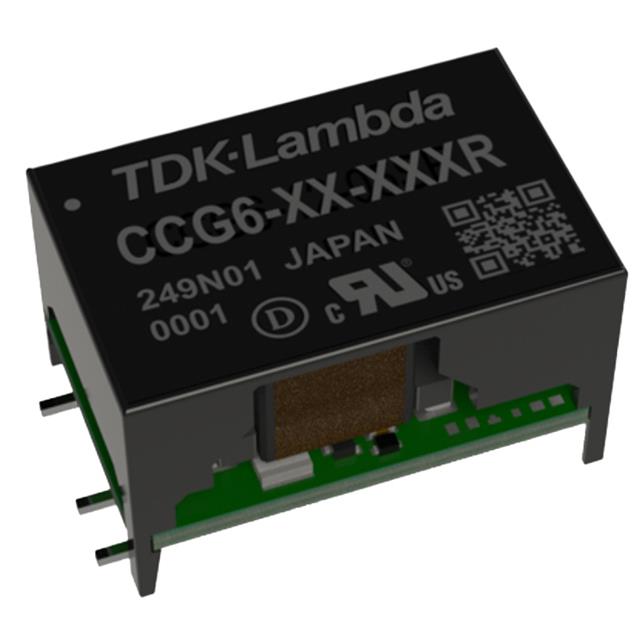

TDK Corporation CCG6-12-03SR	95 °C	-40 °C	12.4 mm	0.46 in	19 mm	0.75 in	11.8 mm	0.49 "	6-SMD Module	1.6 A	ITE (Commercial)	4.5 V	5.28 W	Adjustable Output OCP Remote On/Off	Isolated Module	18 V	Surface Mount	62368-1	1	1.5 kV	Active Low Enable	3.3 V	CE CSA EN IEC UKCA UL

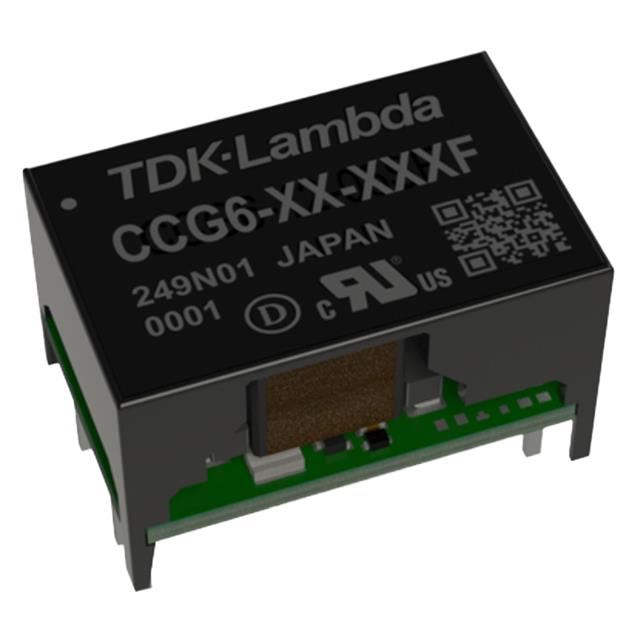

TDK Corporation CCG6-48-12SF	95 °C	-40 °C	12.4 mm	0.45 in	19 mm	0.75 in	11.5 mm	0.49 "	6-DIP Module	500 mA	ITE (Commercial)	18 V	6 W	Adjustable Output OCP Remote On/Off	Isolated Module	76 V	Through Hole	62368-1	1	1.5 kV	Active Low Enable	12 V	CE CSA EN IEC UKCA UL	87 %
TDK Corporation CCG6-12-05SR	95 °C	-40 °C	12.4 mm	0.46 in	19 mm	0.75 in	11.8 mm	0.49 "	6-SMD Module	1.2 A	ITE (Commercial)	4.5 V	6 W	Adjustable Output OCP Remote On/Off	Isolated Module	18 V	Surface Mount	62368-1	1	1.5 kV	Active Low Enable	5 V	CE CSA EN IEC UKCA UL	86 %
TDK Corporation CCG6-48-15DR	95 °C	-40 °C	12.4 mm	0.46 in	19 mm	0.75 in	11.8 mm	0.49 "	6-SMD Module		ITE (Commercial)	18 V	6 W	OCP Remote On/Off	Isolated Module	76 V	Surface Mount	62368-1	2	1.5 kV	Active Low Enable	15 V	CE CSA EN IEC UKCA UL	87 %	-15 V
TDK Corporation CCG6-12-05SF	95 °C	-40 °C	12.4 mm	0.45 in	19 mm	0.75 in	11.5 mm	0.49 "	6-DIP Module	1.2 A	ITE (Commercial)	4.5 V	6 W	Adjustable Output OCP Remote On/Off	Isolated Module	18 V	Through Hole	62368-1	1	1.5 kV	Active Low Enable	5 V	CE CSA EN IEC UKCA UL	86 %
TDK Corporation CCG6-12-12DR	95 °C	-40 °C	12.4 mm	0.46 in	19 mm	0.75 in	11.8 mm	0.49 "	6-SMD Module		ITE (Commercial)	4.5 V	6 W	OCP Remote On/Off	Isolated Module	18 V	Surface Mount	62368-1	2	1.5 kV	Active Low Enable	12 V	CE CSA EN IEC UKCA UL	88 %	-12 V	250 mA
TDK Corporation CCG6-48-03SR	95 °C	-40 °C	12.4 mm	0.46 in	19 mm	0.75 in	11.8 mm	0.49 "	6-SMD Module	1.6 A	ITE (Commercial)	18 V	5.28 W	Adjustable Output OCP Remote On/Off	Isolated Module	76 V	Surface Mount	62368-1	1	1.5 kV	Active Low Enable	3.3 V	CE CSA EN IEC UKCA UL	81 %
TDK Corporation CCG6-48-03SF	95 °C	-40 °C	12.4 mm	0.45 in	19 mm	0.75 in	11.5 mm	0.49 "	6-DIP Module	1.6 A	ITE (Commercial)	18 V	5.28 W	Adjustable Output OCP Remote On/Off	Isolated Module	76 V	Through Hole	62368-1	1	1.5 kV	Active Low Enable	3.3 V	CE CSA EN IEC UKCA UL	81 %
