RSF80 Series

Catalog

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material - Housing & Prism	Type	Mounting Type	Switch Actuation Level	Switch Actuation Level	Current	Output Type	Minimum Liquid Specific Gravity [Min]	Output Configuration	Voltage Rating
Sensata-Crydom RSF88H100R	-20 ░C	100 °C	Polypropylene (PP)	Liquid	Male 1/2" (12.7mm) NPT	20 mm	0.787 in	1 A	Switch (Single Float)	0.85	SPST-NC/NO	300 VDC 300 VAC
Sensata-Crydom RSF86Y100R	-10 °C	120 °C	Polyphenylene Sulphide (PPS)	Liquid	Male 1/2" (12.7mm) NPT	24 mm	0.945 in	600 mA	Switch (Single Float)	0.85	SPST-NC/NO	120 VDC 240 VAC
Sensata-Crydom RSF86H050T	-10 °C	120 °C	Polyphenylene Sulphide (PPS)	Liquid	Male 1/2" (12.7mm) NPT	24 mm	0.945 in	1 A	Switch (Single Float)	0.85	SPST-NC/NO	300 VDC 300 VAC
Sensata-Crydom RSF88Y100R	-20 ░C	100 °C	Polypropylene (PP)	Liquid	Male 1/2" (12.7mm) NPT	20 mm	0.787 in	600 mA	Switch (Single Float)	0.85	SPST-NC/NO	120 VDC 240 VAC

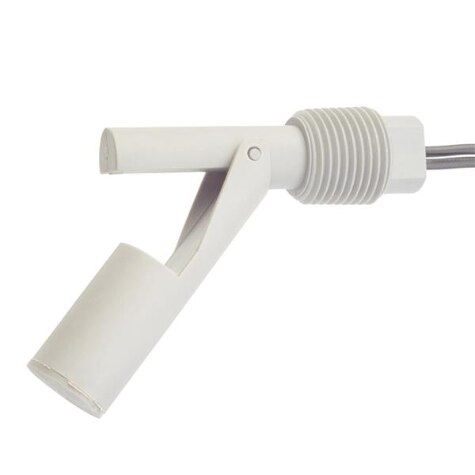

Sensata-Crydom RSF84H100R	-20 ░C	100 °C	Polypropylene (PP)	Liquid	Male 1/2" (12.7mm) NPT	20 mm	0.787 in	1 A	Switch (Single Float)	0.85	SPST-NC/NO	300 VDC 300 VAC
Sensata-Crydom RSF87H100G	-10 °C	105 ░C	Polyvinylidene Fluoride (PVDF)	Liquid	Male 1/2" (12.7mm) NPT			1 A	Switch (Single Float)	0.85	SPST-NC/NO	300 VDC 300 VAC
Sensata-Crydom RSF86YP	-10 °C	120 °C	Polyphenylene Sulphide (PPS)	Liquid	Male 1/2" (12.7mm) NPT	24 mm	0.945 in	600 mA	Switch (Single Float)	0.85	SPST-NC/NO	120 VDC 240 VAC

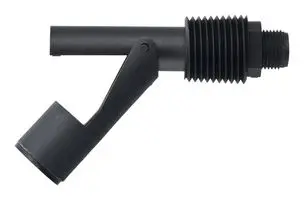

Sensata-Crydom RSF83YP			Nylon	Liquid	Male 1/2" (12.7mm) NPT	20 mm	0.787 in	600 mA	Switch (Single Float)	0.85	SPST-NC/NO	120 VDC 240 VAC

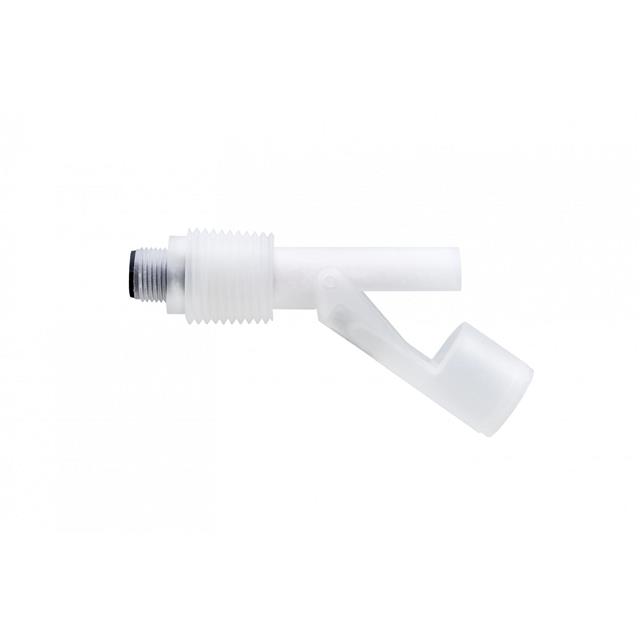

Sensata-Crydom RSF84HP	-20 ░C	100 °C	Polypropylene (PP)	Liquid	Male 1/2" (12.7mm) NPT	20 mm	0.787 in	1 A	Switch (Single Float)	0.85	SPST-NC/NO	300 VDC 300 VAC
Sensata-Crydom RSF87HP	-10 °C	105 ░C	Polyvinylidene Fluoride (PVDF)	Liquid	Male 1/2" (12.7mm) NPT			1 A	Switch (Single Float)	0.85	SPST-NC/NO	300 VDC 300 VAC
