83950 Series
Manufacturer: Belden Inc.
Beta
⌘K

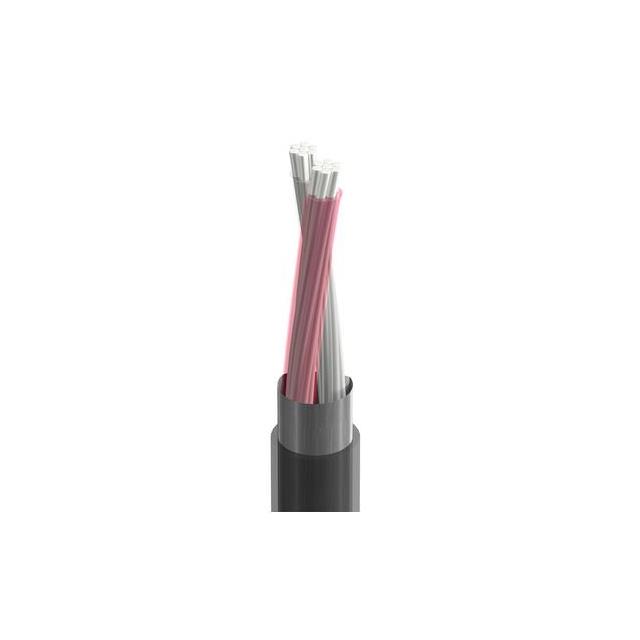

CABLE 2COND 20AWG BLK SHLD
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Wire Gauge | Features | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Cable Type | Conductor Insulation | Usage | Conductor Material | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 28 AWG | 7 | Fluorinated Ethylene-Propylene (FEP) Plenum | 20 AWG | Drain Wire | -70 °C | 200 °C | 3.68 mm | 0.145 " | Foil | 0.305 mm | 0.012 in | Black | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) | Thermocouple | Constantan Iron | 2 | ||
Belden Inc. | Aluminum | 100 % | 28 AWG | 7 | Fluorinated Ethylene-Propylene (FEP) Plenum | 20 AWG | Drain Wire | -70 °C | 200 °C | 3.68 mm | 0.145 " | Foil | 0.305 mm | 0.012 in | Black | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) | Thermocouple | Constantan Iron | 2 | 304.8 m | 1000 ft |
