XZM2DG45 Series

Manufacturer: SunLED

Catalog

LED GREEN CLEAR 2PLCC SMD

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Package / Case	Height (Max) [z]	Supplier Device Package	Lens Transparency	Configuration	Lens Style	Current - Test	Wavelength - Peak	Viewing Angle	Mounting Type	Lens Color	Lens Size [diameter]	Color	Wavelength - Dominant

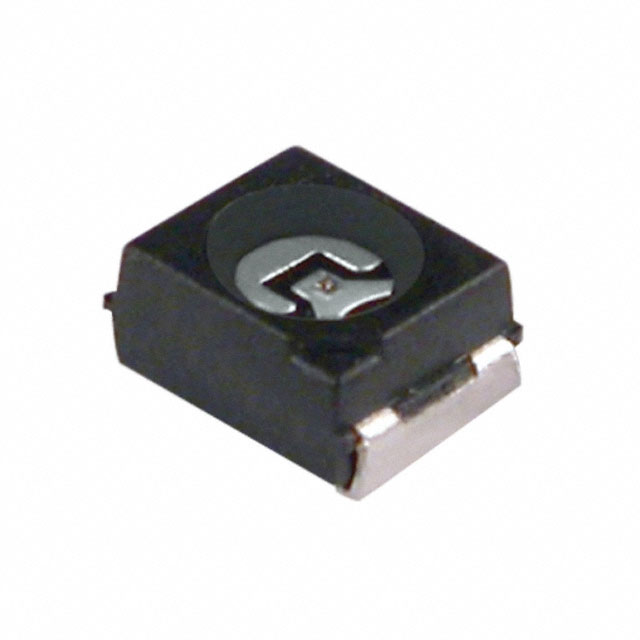

SunLED XZM2DG45SB	3.2 V	2.8 mm	3.2 mm	497 mcd	2-PLCC	2.1 mm	2-PLCC	Clear	Standard	Round with Flat Top	20 mA	520 nm	120 °	Surface Mount	Colorless	2.4 mm Dia	Green	525 nm
SunLED XZM2DG45WT-9	3.2 V	2.8 mm	3.2 mm	1395 mcd	2-SMD Z-Bend Bottom Entry	2.1 mm	2-PLCC	Clear	Standard	Round with Flat Top	20 mA	520 nm	120 °	Surface Mount Bottom Entry	Colorless	2.4 mm Dia	Green	525 nm

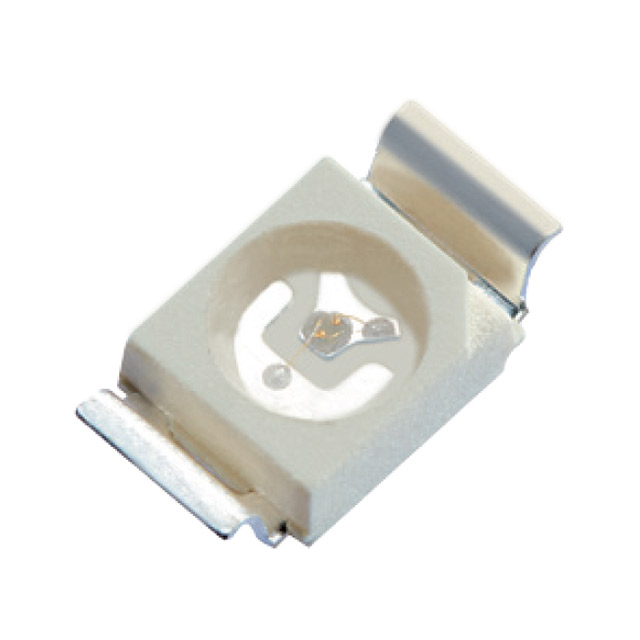

SunLED XZM2DG45S-9	3.2 V	2.8 mm	3.2 mm	1395 mcd	2-SMD Z-Bend	1.9 mm	2-PLCC	Clear	Standard	Round with Flat Top	20 mA	520 nm	120 °	Surface Mount Bottom Entry	Colorless	2.4 mm Dia	Green	525 nm
