LHFPC5GW Series

Catalog

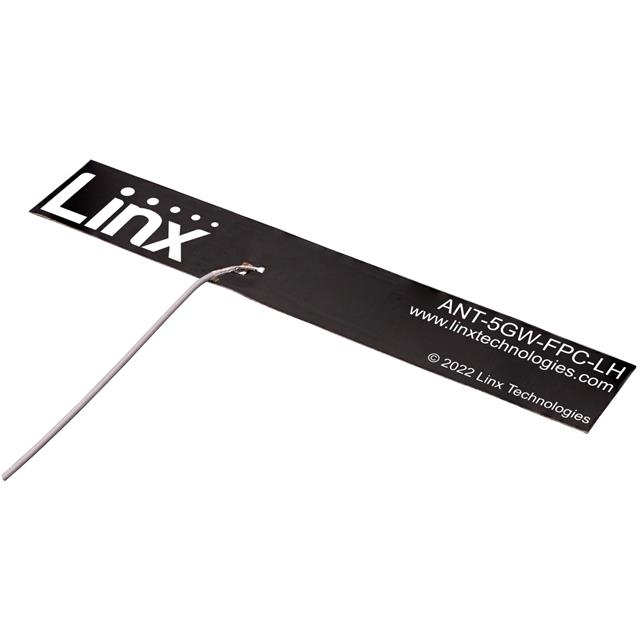

ANTENNAS 5G/4G CELLULAR GHZ FPC ANTENNA, 120X20MM, ORTHOGONAL CABLE EGRESS, 150MM CABLE, UFL

Part	Mounting Type	Frequency Group	Features	Gain	Applications	Number of Bands	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [z]	Height (Max) [z]	Power - Max [Max]	VSWR	Termination	Frequency (Center/Band)	Antenna Type	RF Family/Standard
TE Connectivity AMP Connectors ANT-5GW-FPC-LH150UF	Adhesive	Wide Band	Cable - 150mm	5 dBi 5.1 dBic 5.2 dBi 5.5 dBi 6 dBi 6.2 dBi 6.8 dBi 7 dBi	2G 3G 4G 5G LTE	9	617 MHz 698 MHz 791 MHz 832 MHz 1525 GHz 1695 GHz 2300 GHz 3300 GHz 4400 GHz	1.518 GHz 698 MHz 803 MHz 894 MHz 1661 GHz 2200 GHz 2690 GHz 4200 GHz 5000 GHz	0.004 in	0.1 mm	2 W	1.6 1.7 1.8 1.9 2 2.5 2.7 4.7	MHF1 U.FL	1.175 GHz 1.593 GHz 1.947 GHz 2.495 GHz 3.75 GHz 4.7 GHz 657.5 MHz 750.5 MHz 842.5 MHz	Flat Patch	Cellular
