GD57 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

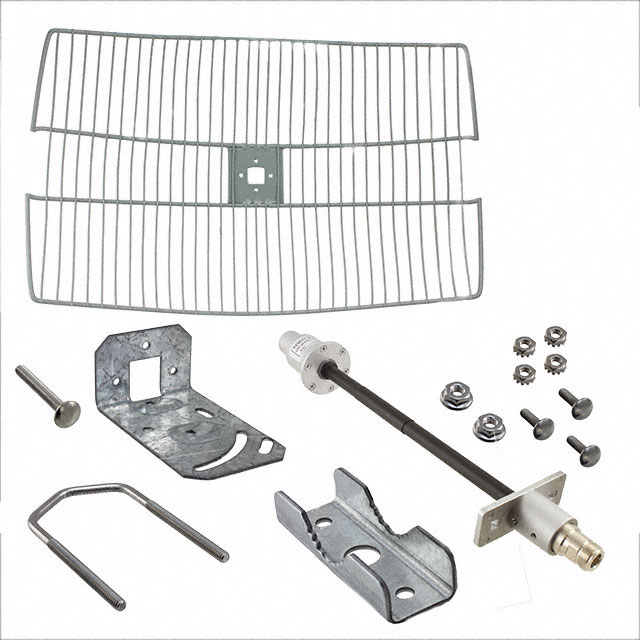

RF ANT 5.7GHZ GRID N FEM BRKT MT
| Part | Frequency (Center/Band) | Mounting Type | Frequency Group | Applications | Antenna Type | Frequency Range [Min] | Frequency Range [Max] | Number of Bands | Height (Max) [Max] [z] | Height (Max) [z] | VSWR | Power - Max [Max] | Gain | Termination | RF Family/Standard |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 5.7 GHz | Bracket Mount | SHF (f > 4GHz) | WiMax™ WLAN | Parabolic Grid | 5.47 GHz | 5.725 GHz | 1 | 24 in | 609.6 mm | 1.5 | 100 W | 25 dB | N Type Female | WiFi |
TE Connectivity AMP Connectors | 5.7 GHz | Bracket Mount | SHF (f > 4GHz) | WiMax™ WLAN | Parabolic Grid | 5.47 GHz | 5.725 GHz | 1 | 24 in | 609.6 mm | 1.5 | 100 W | 25 dB | N Type Female | WiFi |
