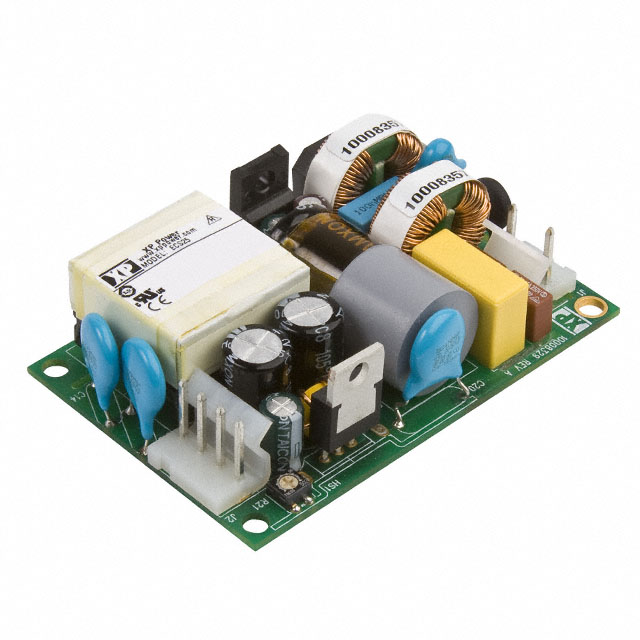

ECS25 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY, MEDICAL, FIXED, 80 V, 264 V, 25 W, 24 V, 1.04 A ROHS COMPLIANT: YES
| Part | Minimum Load Required | Number of Outputs | Power (Watts) | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Efficiency | Type | Current - Output 1 | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 | Applications | Features | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 1 | 25 W | CB | 24.13 mm | 3 " | 50.8 mm | 76.2 mm | 2 in | 24.2 mm | Chassis Mount | 90 % | Open Frame | 1.04 A | 4000 V | 70 °C | -20 °C | 80 VAC | 264 VAC | 24 V | ITE (Commercial) Medical | Adjustable Output DC Input Capable Universal Input | 62368-1 | |
 XP Power | 1 | 25 W | CB | 24.13 mm | 3 " | 50.8 mm | 76.2 mm | 2 in | 24.2 mm | Chassis Mount | 90 % | Open Frame | 1.67 A | 4000 V | 70 °C | -20 °C | 80 VAC | 264 VAC | 15 V | ITE (Commercial) Medical | Adjustable Output DC Input Capable Universal Input | 62368-1 |
