5218N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

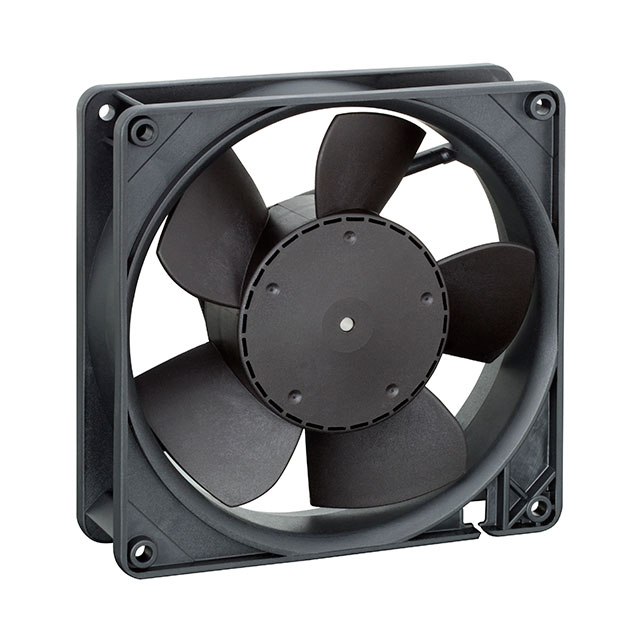

FAN AXIAL 127X38MM 48VDC WIRE
| Part | Material - Blade [custom] | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Air Flow | Air Flow | Lifetime @ Temp. | Noise | Weight | Weight | Width [y] | Fan Type | Operating Temperature | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Power (Watts) | RPM | Voltage - Rated | Bearing Type | Termination | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Aluminum | Aluminum | 56 VDC | 40 V | 127 CFM | 3.56 m³/min | 57500 Hrs | 46 dB(A) | 0.683 lb | 309.8 g | 38 mm | Tubeaxial | (-20 ~ 65°C) | -20 ░C | 65 °C | CE CSA UL VDE | 6.5 W | 3150 RPM | 48 VDC | Ball | 2 Wire Leads | 5 in | 5 " | ||
ebm-papst Inc. | Aluminum | Aluminum | 56 VDC | 40 V | 148.3 CFM | 4.15 m³/min | 45000 Hrs | 51 dB(A) | 0.683 lb | 309.8 g | 38 mm | Tubeaxial | -20 ░C | 55 °C | CE CSA UL VDE | 10 W | 3650 RPM | 48 VDC | Ball | 2 Wire Leads | 5 in | 5 " | 55 °C | -4 °F |
