ERNI MiniBridge Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SRCA 1,27 6 M 1-KS SMD 137 E1 094 * GURT
| Part | Features | Connector Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mounting Type | Style | Insulation Height | Insulation Height | Contact Type | Number of Positions Loaded | Insulation Color | Material Flammability Rating | Contact Shape | Contact Length - Mating | Contact Length - Mating | Insulation Material | Contact Material | Contact Finish - Post | Number of Rows | Number of Positions | Termination | Shrouding | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Accessory Type | Color | Shell Size - Insert | For Use With/Related Products | Wire Gauge [Min] | Wire Gauge [Max] | Wire Type | Contact Finish | Pitch | Pitch | Cable Termination | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Board Guide Solder Retention | Header | Latch Holder | -55 C | 150 °C | 5.4 A | Right Angle Surface Mount | Board to Cable/Wire | 3.47 mm | 0.137 in | Male Pin | All | Black | UL94 V-0 | Square | 0.087 in | 2.21 mm | Liquid Crystal Polymer (LCP) | Copper Alloy | Tin | 1 | 6 | Solder | Shrouded - 4 Wall | Gold | 1.27 mm | 0.05 in | ||||||||||||
 TE Connectivity AMP Connectors | Header | 5.4 A | Through Hole | Board to Cable/Wire | Male Pin | All | Black | UL94 V-0 | Square | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | 1 | Solder | Shrouded - 4 Wall | Gold | 1.27 mm | 0.05 in | |||||||||||||||||||||
 TE Connectivity AMP Connectors | Board Guide Pick and Place Solder Retention | Header | Latch Holder | -55 C | 150 °C | 5.4 A | Surface Mount | Board to Cable/Wire | 5.25 mm | 0.207 in | Male Pin | All | Black | UL94 V-0 | Square | 0.087 in | 2.21 mm | Liquid Crystal Polymer (LCP) | Copper Alloy | Tin | 1 | 2 | Solder | Shrouded - 4 Wall | Gold | 1.27 mm | 0.05 in | ||||||||||||
 TE Connectivity AMP Connectors | Nut | Silver | M10 | Circular Connectors | |||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Receptacle | Locking Ramp | Free Hanging (In-Line) | Female Socket | 1 | 2 | Black | 24 AWG | 26 AWG | Discrete Ribbon Cable | Gold | 0.05 in | 1.27 mm | IDC | |||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Receptacle | Latch Lock | Free Hanging (In-Line) Right Angle | Female Socket | 1 | 4 | Discrete Ribbon Cable | 0.05 in | 1.27 mm | IDC | 22 AWG | ||||||||||||||||||||||||||||

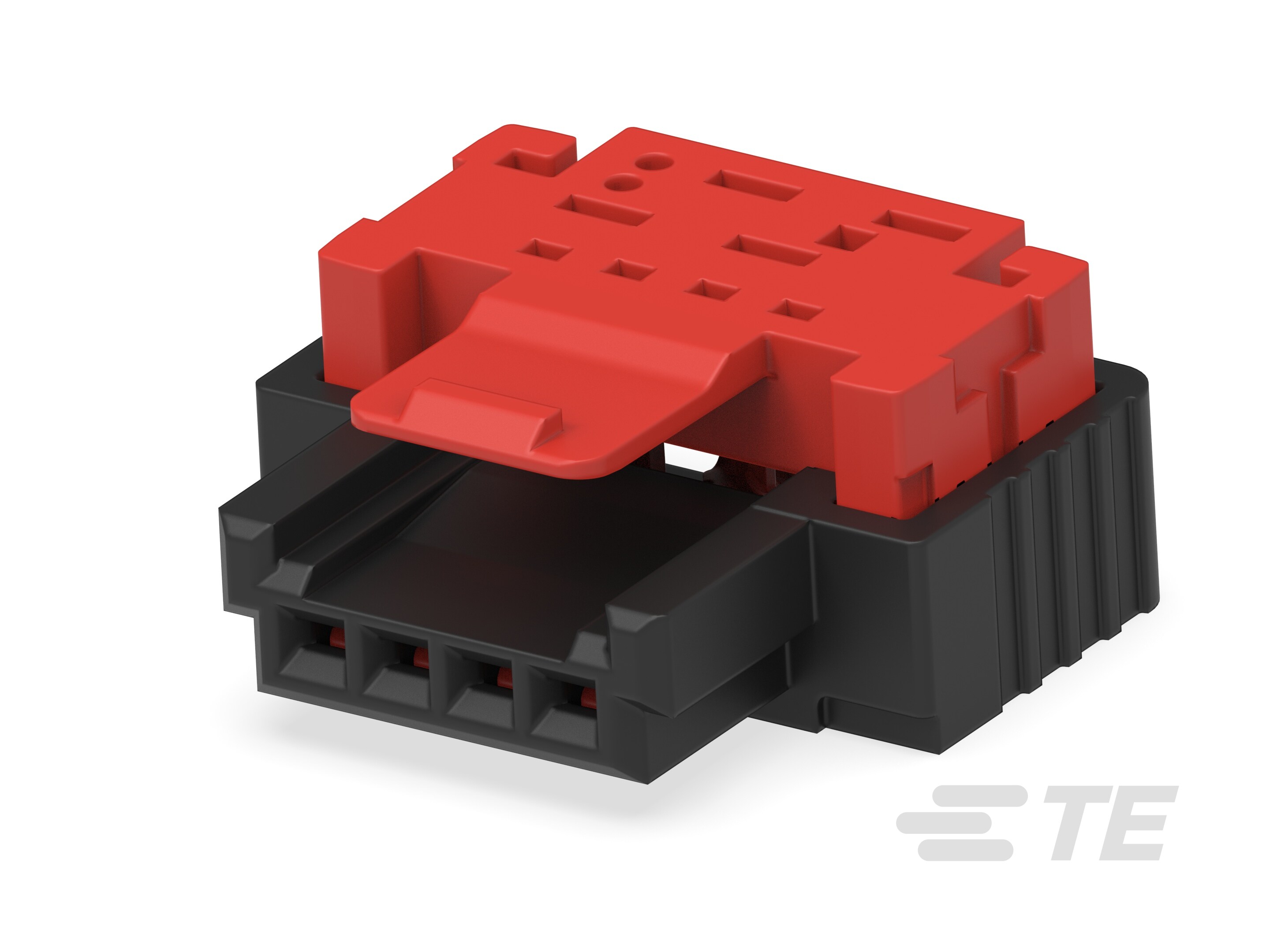

 TE Connectivity AMP Connectors | Receptacle | Latch Lock | Free Hanging (In-Line) Right Angle | Female Socket | 1 | 2 | Red | Discrete Ribbon Cable | 0.05 in | 1.27 mm | IDC | 22 AWG | |||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Receptacle | Latch Lock | Free Hanging (In-Line) | Female Socket | 1 | 4 | Discrete Ribbon Cable | 0.05 in | 1.27 mm | IDC | 22 AWG | ||||||||||||||||||||||||||||
TE Connectivity AMP Connectors |
