SD-30 Series

Catalog

CONN CIRCULAR DIN SKT 3 POS SOLDER ST THRU-HOLE 3 TERMINAL 1 PORT

Part	Shell Material	Material Flammability Rating	Primary Material	Fastening Type	Voltage Rating	Color	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Connector Type	Mounting Type	Orientation	Termination	Shielding	Current Rating (Amps)	Features	Contact Finish - Mating	Cable Opening	Cable Opening	Insert Material	Contact Material

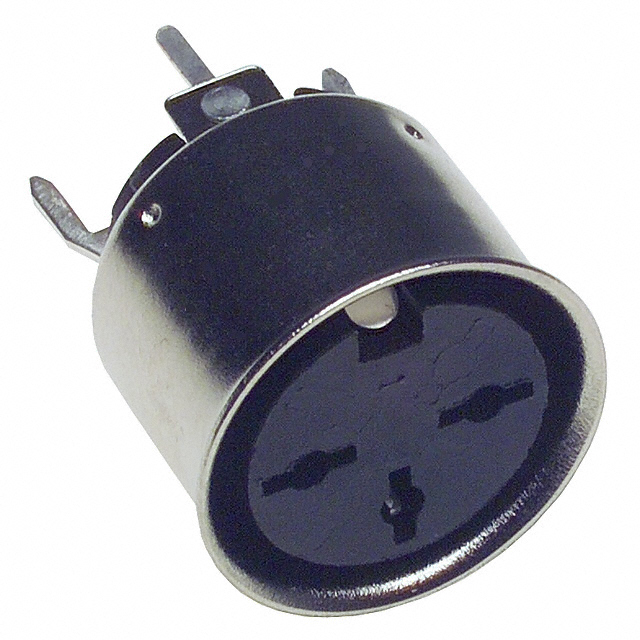

Same Sky (Formerly CUI Devices) SD-30BV	Iron Sheet	UL94 V-0	Metal	Push-Pull	24 VDC	Silver	Nickel	-20 ░C	60 °C	DIN	Receptacle Female Sockets	Through Hole	Keyed	Solder	Shielded
Same Sky (Formerly CUI Devices) SD-30LP	Zinc Alloy		Metal	Threaded	100 VAC	Silver	Nickel	-40 C	85 °C	DIN	Plug Male Pins	Free Hanging (In-Line)	Keyed	Solder	Shielded	2 A	Coupling Nut Strain Relief	Silver	8 mm	0.315 in

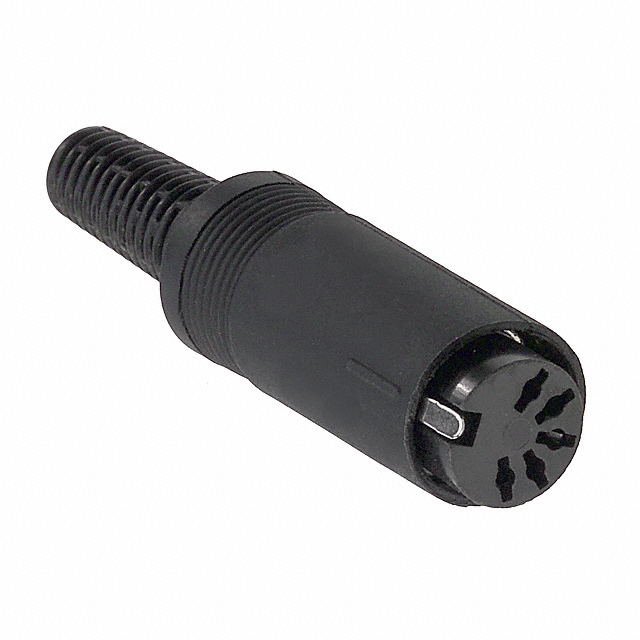

Same Sky (Formerly CUI Devices) SD-30J	Steel		Metal	Push-Pull	100 VAC	Black	Black Nickel	-5 °C	110 °C	DIN	Receptacle Female Sockets	Free Hanging (In-Line)	Keyed	Solder	Unshielded	2 A	Strain Relief	Silver			Polycarbonate (PC)	Brass
Same Sky (Formerly CUI Devices) SD-30LP	Zinc Alloy		Metal	Threaded	100 VAC	Silver	Nickel	-40 C	85 °C	DIN	Plug Male Pins	Free Hanging (In-Line)	Keyed	Solder	Shielded	2 A	Coupling Nut Strain Relief	Silver	8 mm	0.315 in		Brass
Same Sky (Formerly CUI Devices) SD-30BV	Iron Sheet	UL94 V-0	Metal	Push-Pull	24 VDC	Silver	Nickel	-20 ░C	60 °C	DIN	Receptacle Female Sockets	Through Hole	Keyed	Solder	Shielded							Brass
