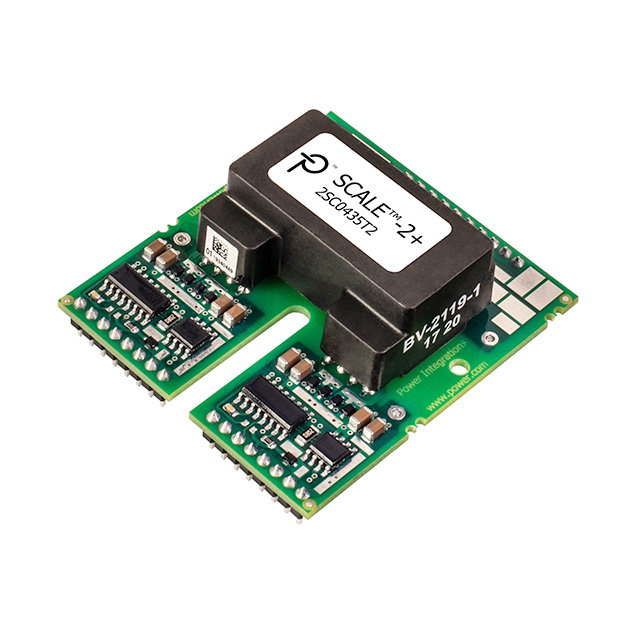

2SC0435 Series

Catalog

IC GATE DRVR HI/LOW SIDE MODULE

Part	Gate Type	Supplier Device Package	High Side Voltage - Max (Bootstrap) [Max]	Rise / Fall Time (Typ)	Package / Case	Driven Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Drivers	Mounting Type	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]
POWER INTEGRATIONS 2SC0435T2H0C-17	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET	Module	1700 V	20 ns	Module	High-Side or Low-Side	35 A	35 A	15.5 V	14.5 V	2	Chassis Mount	Independent	85 C	-40 ¯C
POWER INTEGRATIONS 2SC0435T2H0-17	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET	Module	1700 V	20 ns	Module	High-Side or Low-Side	35 A	35 A	15.5 V	14.5 V	2	Surface Mount	Independent	85 C	-40 ¯C
POWER INTEGRATIONS 2SC0435T2G1-17	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET	Module	1700 V	20 ns	Module	High-Side or Low-Side	35 A	35 A	15.5 V	14.5 V	2	Surface Mount	Independent	85 C	-40 ¯C
